Features

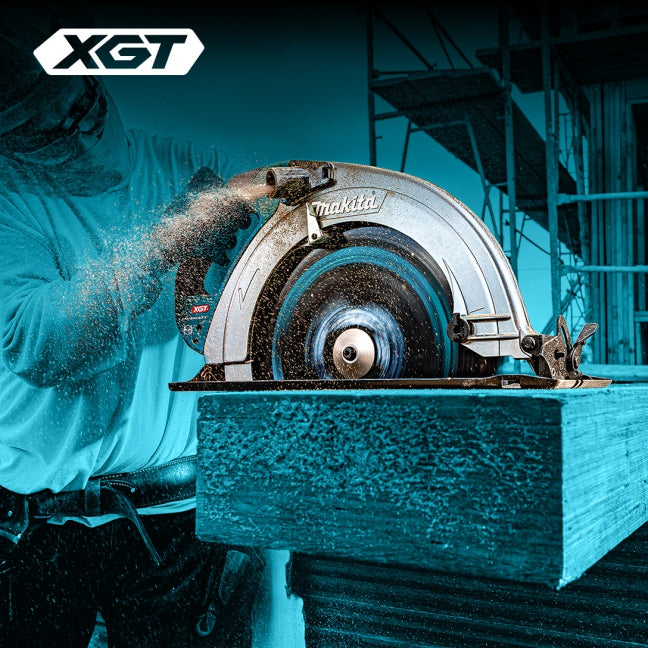

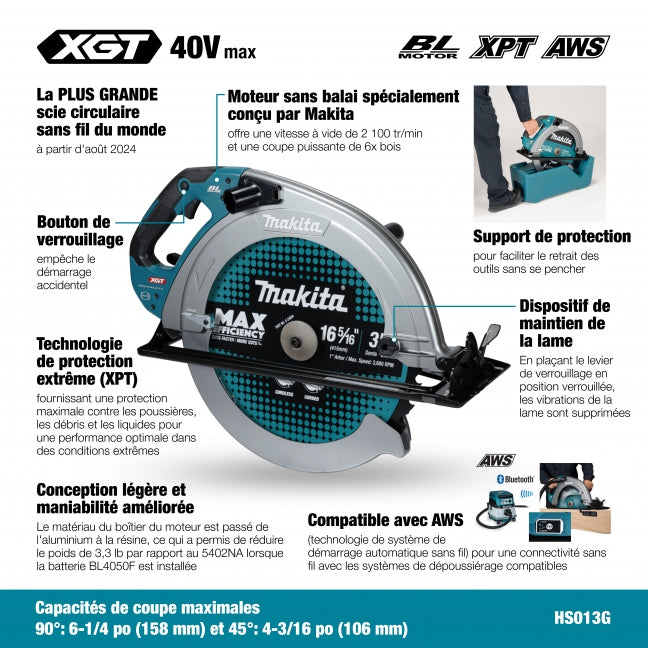

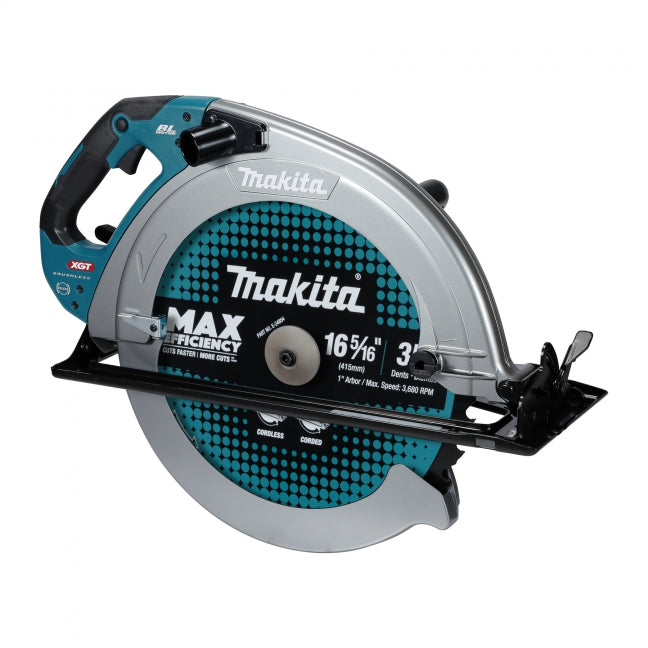

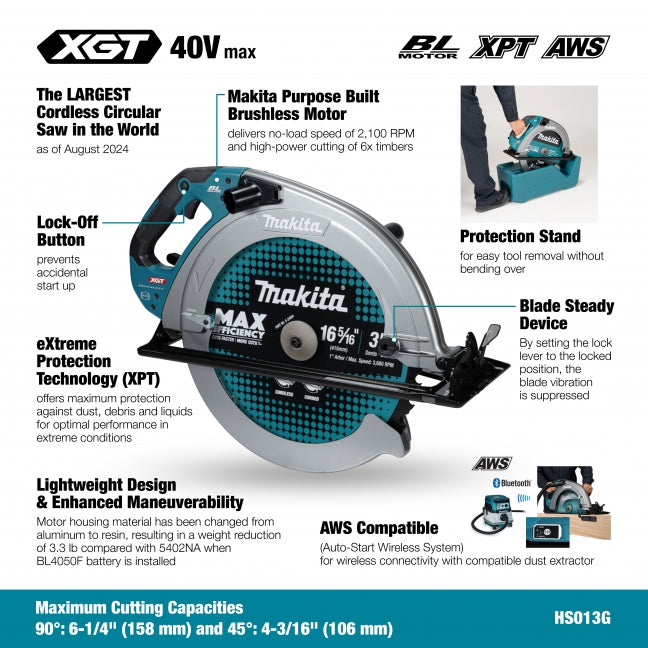

- 40Vmax XGT Brushless 16-5/16" Circular Saw, Electric Brake, Soft Start
- This model has been developed based on Makita electric 16-5/16" model 5402NA.

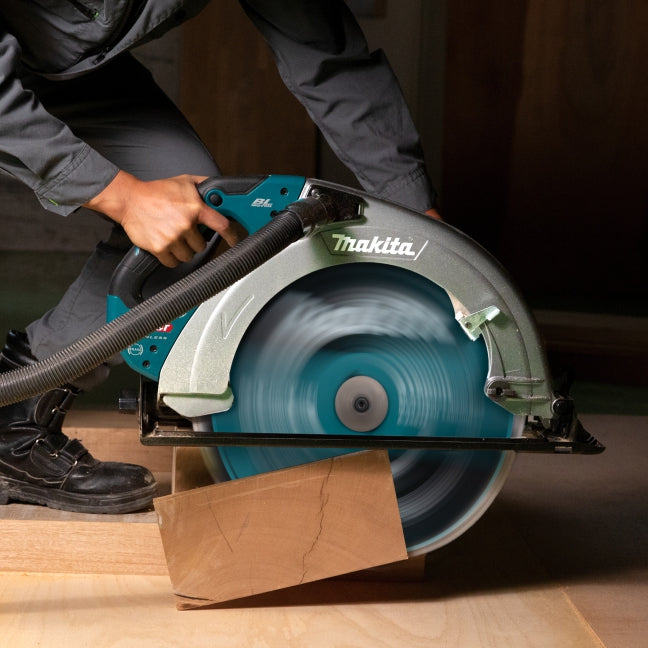

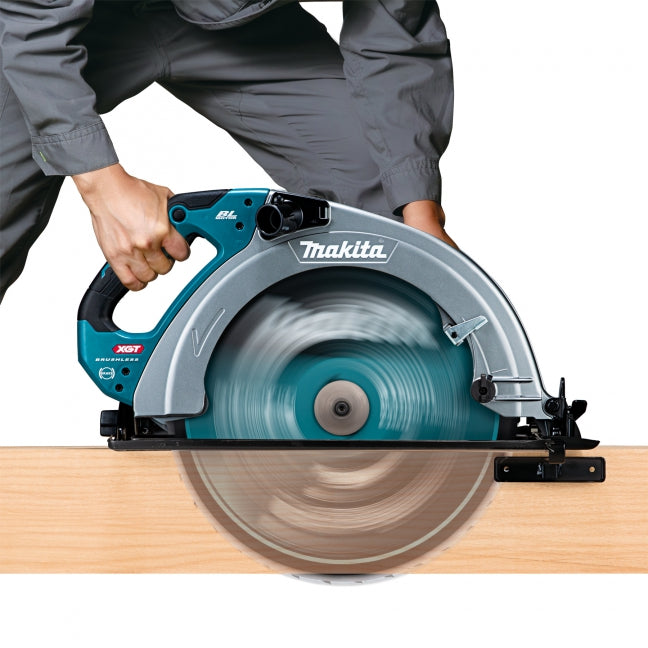

- With 40Vmax XGT power and a purpose built genuine Makita brushless motor, the world's largest cordless circular saw can cut timbers up to 6-1/4" at 90 degrees and 4-3/16" at 45 degrees.
- Lightweight design and enhanced maneuverability
- The motor housing material has been changed from aluminum to resin, resulting in a weight reduction of 1.5kg compared with model 5402NA when a BL4050F battery is installed.
- This reduction has been achieved without compromising rigidity, ensuring the durability similar or superior to the current electric model.

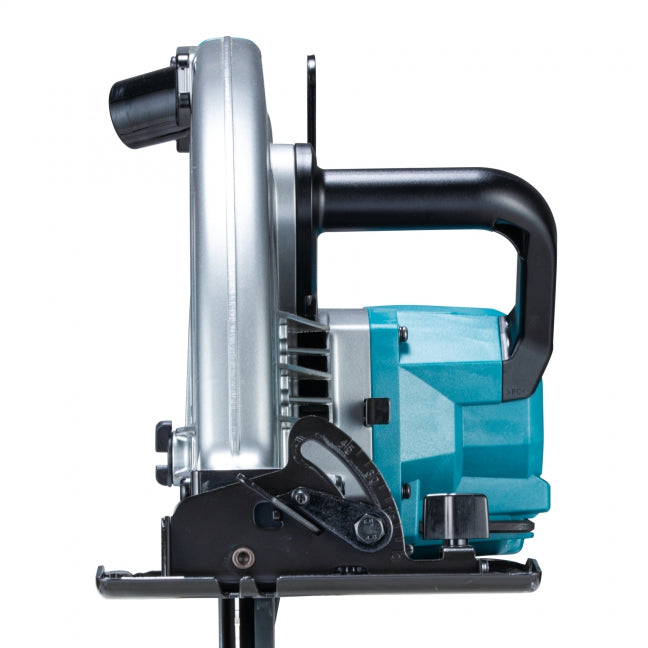

- With the adoption of a brushless motor, the tool's width has been reduced by 65mm compared with model 5402NA, enhancing stability and maneuverability during blade changes.

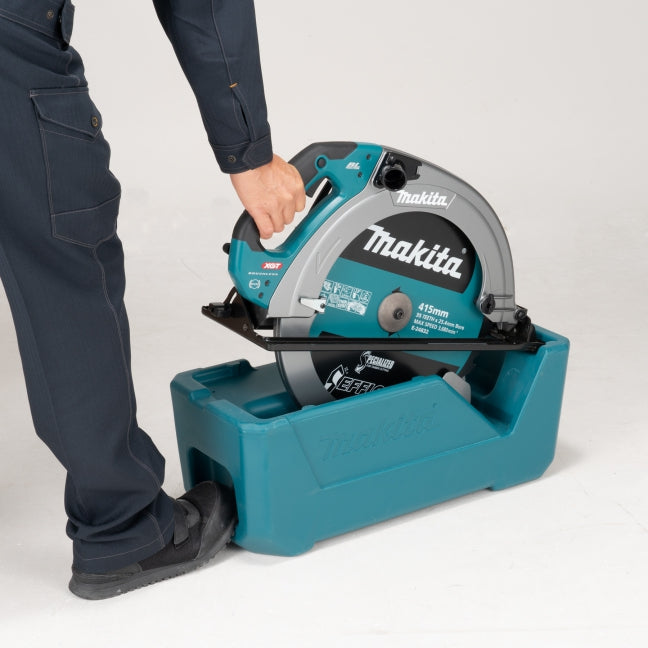

- Includes a protective resin stand allowing for storage without damaging the tool.
- Stabilizing the stand by pressing down the recessed portion with a foot allows for easy removal of the tool from storage.
- The tool can be temporarily placed at an angle for easy access to the tool without bending over.

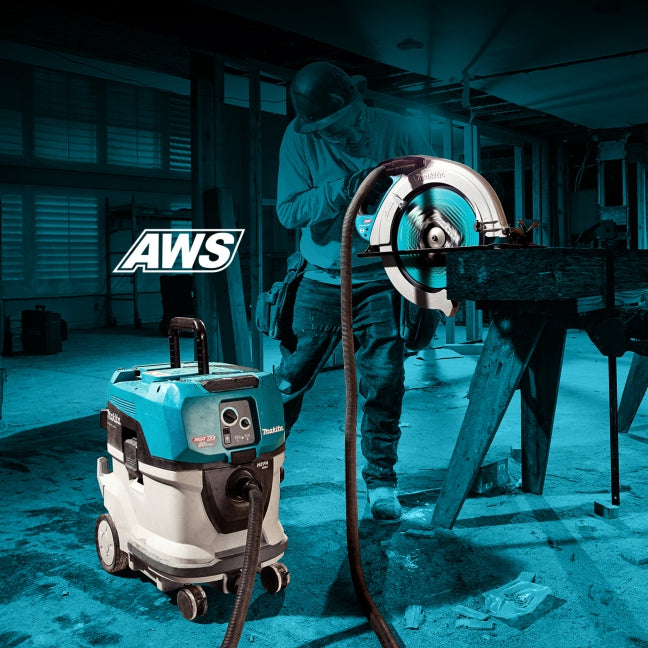

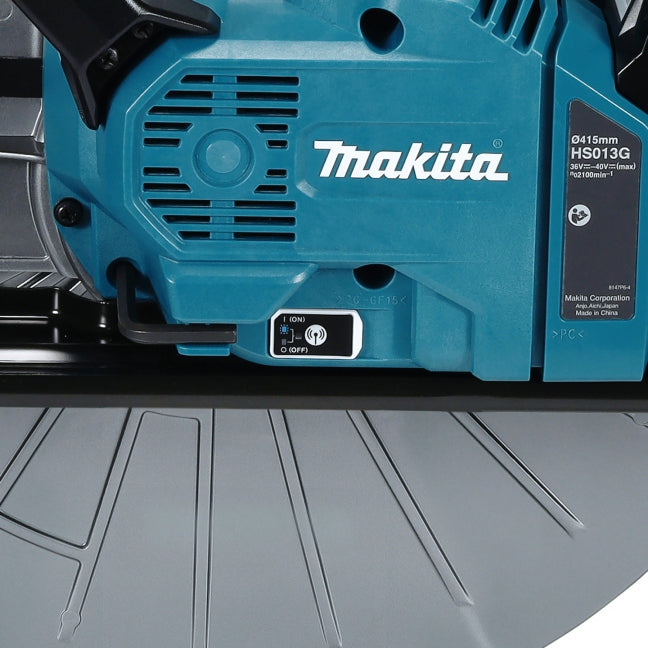

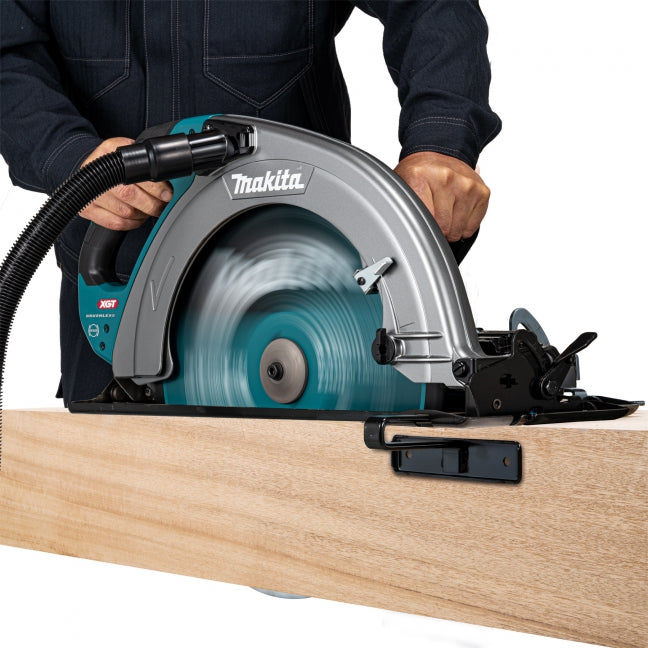

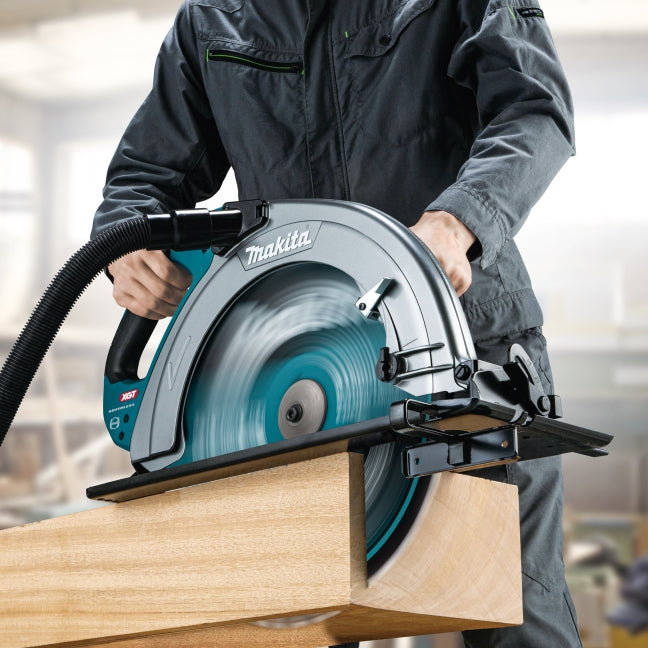

- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth

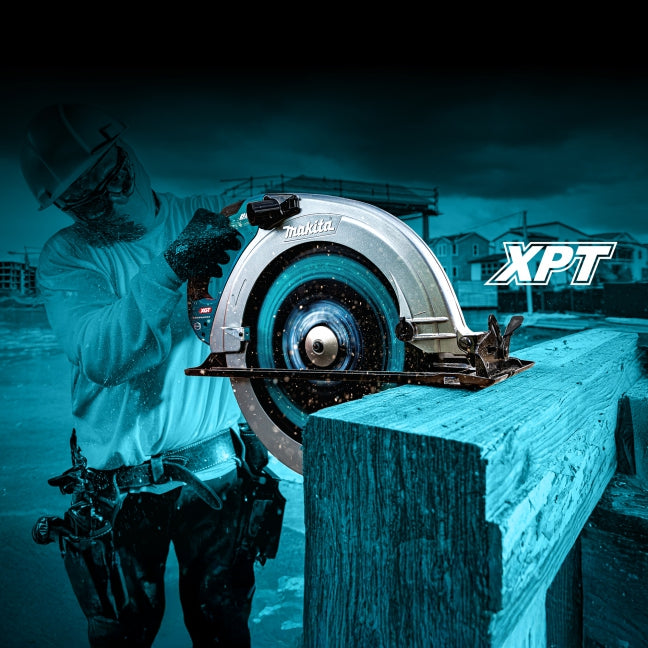

- eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
- Bevel capacity: 0 - 45 degrees
- Right-side saw blade position
- Equipped with electric brake
- Soft start suppresses start-up reaction for more control and better accuracy
- Anti-restart function minimizes accidental start-up
Items Included: Tool Only. Batteries and Charger Sold Separately. 16-5/16" C.T Blade 35T (E-24854), Protection Stand (4131E7-2), Hex Wrench 6 (783204-6)
Shipping Dimensions (Length x Width x Height) & Weight : 28 In. X 14.4 In. X 25 In. Weight : 44.6 Lb.
Specifications
| Battery Capacities |
40V Max Li-Ion |
| Blade Diameter |
16-5/16" (415 mm) |
| Arbor |
1" (25 mm) |
| Maximum Cutting Capacities: |
0° 6-1/4" (158 mm), 45° 4-3/16" (106 mm) |
| No Load Speed |
2,100 RPM |
| Vibration Level |
2.5 m/s² |
| Noise Level |
98 dB(A) |
| Dimensions (L x W x H) |
23-7/8" x 9-1/8" x 18-3/4" (606 mm x 233 mm x 476 mm) |
| Net Weight |
22.3 lbs (10.1 kg) |
