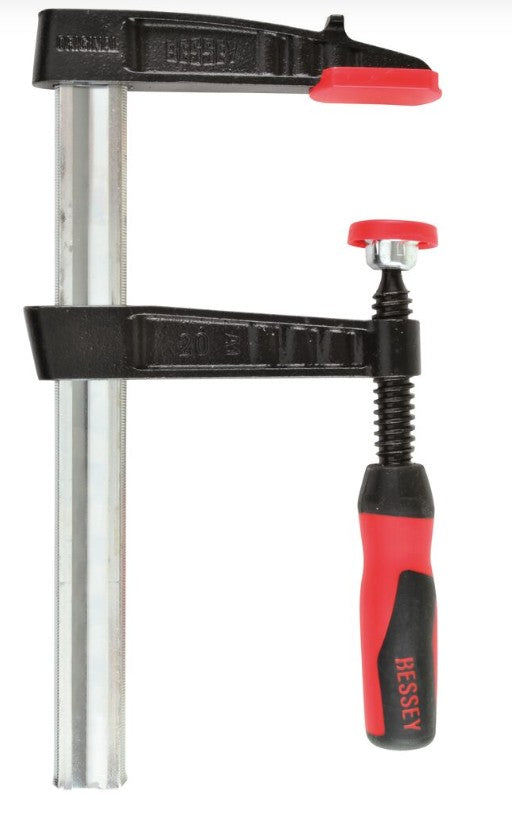

Bessey TG4.008+2K 8 in. x 4 in. 880 lb. Clamping Force Light Duty F-Style Woodworking Clamp with 2K Handle provides maximum safety with the integrated anti-slip system. A set screw is molded into the sliding arm and interlocks with the serration on the rail. Corrugated malleable cast iron fixed jaw and sliding arm generate powerful, rigid clamping. Smooth running spindle with Acme thread allows for more clamping with less effort. The TG series offers both the tried-and-true wooden handle or 2K composite handle with a comfort insert.
Features
- High-quality profiled steel rail acts as a reliable reinforcement against torsional forces, while the serration on six faces additionally prevents the clamp from slipping
- Hardened, smooth-running spindle with ACME thread = more clamping with less cranking
- Wood handle
- Top jaw press fitted (swaged) to rail - no mechanical fasteners to loosen
- Original BESSEY malleable cast bar clamps are available in over 50 different combinations of capacity, throat depth & style of handle
Specifications
| Model Number |
TG4.008+2K |
| Clamping capacity |
8 in. |
| Throat depth |
4 in. |
| Clamping force |
880 lb. |
| Approximate Weight |
2.35 lb. |
| Length |
11.477 in. |
| Width |
6.1 in. |
| Height |
1.312 in. |
