Product Highlights

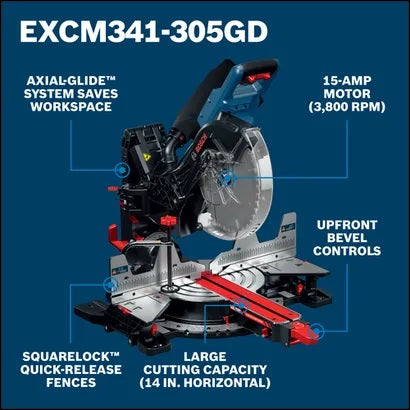

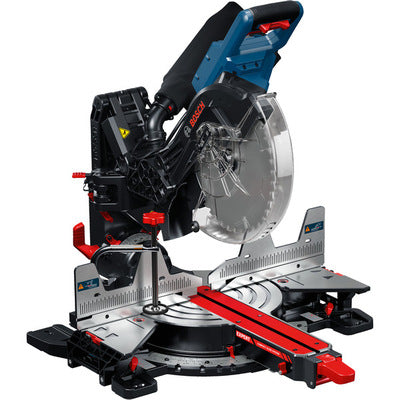

The Bosch EXPERT EXCM341-305GD 12 In. 15-Amp Dual-Bevel Glide Miter Saw delivers smooth cutting action, accurate performance, and a space-saving design enabled by Bosch’s Compact Glide System. With a large cutting capacity of 13-7/16 In. horizontally and 4-1/8 In. vertically, it’s built to handle a wide range of material sizes. Integrated base extensions provide added support, while built-in length stops help make repetitive cuts faster and more efficient. A shadow LED line delivers a clear guide for precise cuts, while easy-to-read bevel stops at common angles enable fast, precise adjustments. This tool bevels 47 degrees left and right and miters 52 degrees left and 60 degrees right, providing versatility for a wide range of compound cuts. A large dust chute and optimized design help manage dust effectively, keeping the work area cleaner.
Features

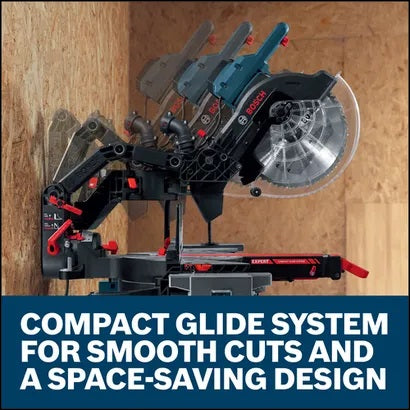

- Bosch-exclusive compact glide system – delivers smooth cutting motion, durable precision and space-saving design, allowing for placement closer to a wall

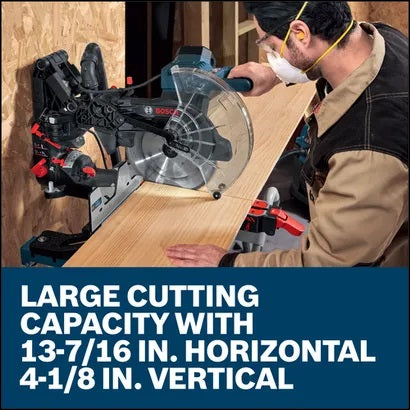

- Large cut capacity – with 13-7/16 inch horizontal and 4-1/8 inch vertical handles a wide range of material sizes
- Cutting capacities – cut up to 7 inch base molding (against fence), 6-3/4 inch (38°) and 7-1/2 inch (45°) crown molding (angled against fence), and 11 inch crown molding (flat on table)
- 47º dual-bevel function – allows for large compound cuts to either side of the workpiece

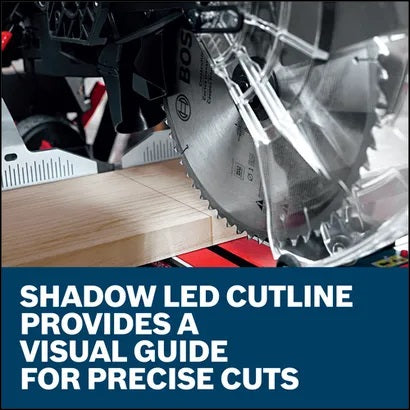

- Shadow led cutline – offers visual guide for precise cuts without needing manual adjustments
- Bevel stops – pre-set at common angles for quick, accurate adjustments
- Integrated base extensions – provide increased material support, while built-in length stops make repetitive cuts fast and efficient
- Cam-lock design – allows for quick, secure angle adjustments and locking
- Enhanced dust management – with large dust chute and optimized design to help keep the work area clean
- Limited 1 year warranty – bosch corded portable power tools and corded benchtop power tools are eligible for repair or replacement of defective parts for up to 1 year
Technical data
The most important data
| Amperage |
15 |
| Bevel Angle Range |
47° left and 47° right |
| Bevel Stops |
0°, 33.9°, 45° and 47° (L/R) |
| Blade Diameter (in) |
12 |
| Blade Size |
12" |
| Category |
Compound Miter Saws |
| Dust Collection |
Yes |
| Electric Motor Brake |
Yes |
| Height in |
29.1 " |
| Length in |
33.3 " |
| Max. Base Molding Against Fence |
7" |
| Max. Crown Molding (38° Spring) Angled Against Fence |
6-3/4" |
| Max. Crown Molding (45° Spring) Angled Against Fence |
7-1/2" |
| Max. Cut Capacity - 0° Miter 0° Bevel |
4-1/8" x 13-7/16" |
| Max. Cut Capacity - 0° Miter 45° Left Bevel |
2" x 13-7/16" |
| Max. Cut Capacity - 0° Miter 45° Right Bevel |
1-1/2" x 13-7/16" |
| Max. Cut Capacity - 45° Miter 0° Bevel |
4-1/8" x 9-7/16" |
| Max. Cut Capacity - 45° Miter 45° Left Bevel |
2" x 9-7/16" |
| Max. Cut Capacity - 45° Miter 45° Right Bevel |
1-1/2" x 9-7/16" |
| Miter Angle Range |
52° Left, 60° Right |
| Miter Detents |
0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right) |
| Miter Positive Stops |
0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right) |
| No Load RPM |
4,000 |
| Voltage |
120V |
| Weight |
67 lb |
| Width in |
26 " |
| Works With |
Miter Saw Stands, T1B, T4B, GTA3800, Crown Molding Stops (Pair), MS1233, Anti-Static Vacuum Hoses, VH1622A and VH1635A |
| Includes |
(1) EXCM341-305GD 12 In. Dual-Bevel Glide Miter Saw
(1) Premium 12 In. 60-Tooth Carbide-Tipped Blade
(1) Wrench
(1) Toolless Vertical Work Clamp
(1) Dust Bag/Assembly |
