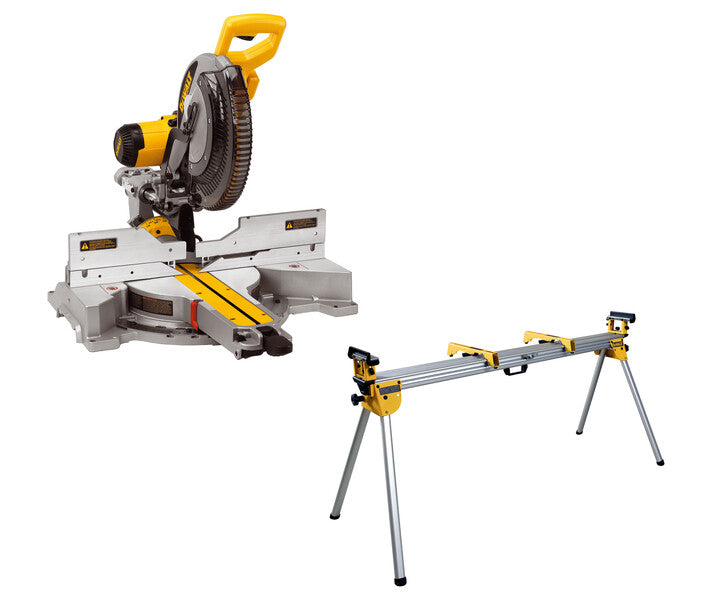

DEWALT DWS780LST 15 Amp 12 in. Double Bevel Sliding Compound Mitre Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90 Degree increased mitre capacity of 60 Degree (R) and 50 Degree (L) features durable stainless-steel mitre detent plate with cam lock for repeatable accuracy with easy adjustments. The commination with the DWX723 Heavy-Duty Folding Stand will provide more support and stable for your work options.
Features
DEWALT DWS780 - 12 IN. 15 AMP CORDED DOUBLE BEVEL SLIDING COMPOUND MITRE SAW
- Integrated XPS cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility
- Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability, Oversized bevel scale makes bevel angle adjustments accurate and easy
- Super-efficient dust collection system captures over 75% of dust generated
- Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
- Exclusive back fence design cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°. Mitres 60° to the right and 50° to the left providing increased capacity
- Adjustable stainless-steel mitre detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Oversized bevel scale makes bevel angle adjustments accurate and easy
- Compact, lightweight design (58 lbs.) allows for easy transport and storage
- Cam lock mitre handle with detent override deliver quick and accurate mitre angles
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Innovative gearbox and belt-drive design increases vertical cutting capacity
- Precise mitre system and machined base fence support optimize durability and cutting accuracy
DEWALT DWX723 HEAVY-DUTY FOLDING MITRE SAW STAND
- Universal design of DEWALT mitre saw stand works with all brands of mitre saws
- 5-1/2 ft. beam extends to support up to 16 ft. of material and up to 500 lbs.
- Legs provide superior support and fold for easy storage; together with Leg Lock Levers allow for fast and easy set up
- Mitre saw mounting brackets allow easy and secure mounting of mitre saw to stand
Application
- Cutting stair tread up to 14 in. cross cut (with back fence)
- Cutting base molding vertically against fence
- Cutting crown molding vertically nested against fence
- Cutting 2x material and precision cuts for woodworking
Specifications
| Bevel Type |
Double Bevel |
| Mitre Saw Style |
Sliding Compound |
| Blade Diameter |
12 in. |
| Amps |
15 Amps |
| No Load Speed |
3800 RPM |
| Arbor Size |
5/8 in. or 1 in. |
| Vertical Capacity |
|
| Baseboard Against Fence |
6-3/4 in. |
| Crown Molding Vertically Nested |
7-1/2 in. |
| Horizontal Capacity |
|
| Baseboard Lying Flat |
16 in. |
| Crown Molding Lying Flat |
13-3/4 in. |
| 45° Bevel Cut Capacity (dimensional lumber) |
2x14 (2x16 with back fence) |
| 90° Cross-Cut Capacity (dimensional lumber) |
2x14 (2x16 with back fence) |
| 90° Cross-Cut Capacity (Max Width) |
16 in. |
| 45° Mitre Cut Capacity (Max Height) |
2x12 |
| 45° Mitre Cut Capacity (Max Width) |
2x12 |
| For Wood Cutting |
YES |
| For Metal Cutting |
NO |
| Handle Type |
Top Handle |
| Power Tool Type |
Corded |
