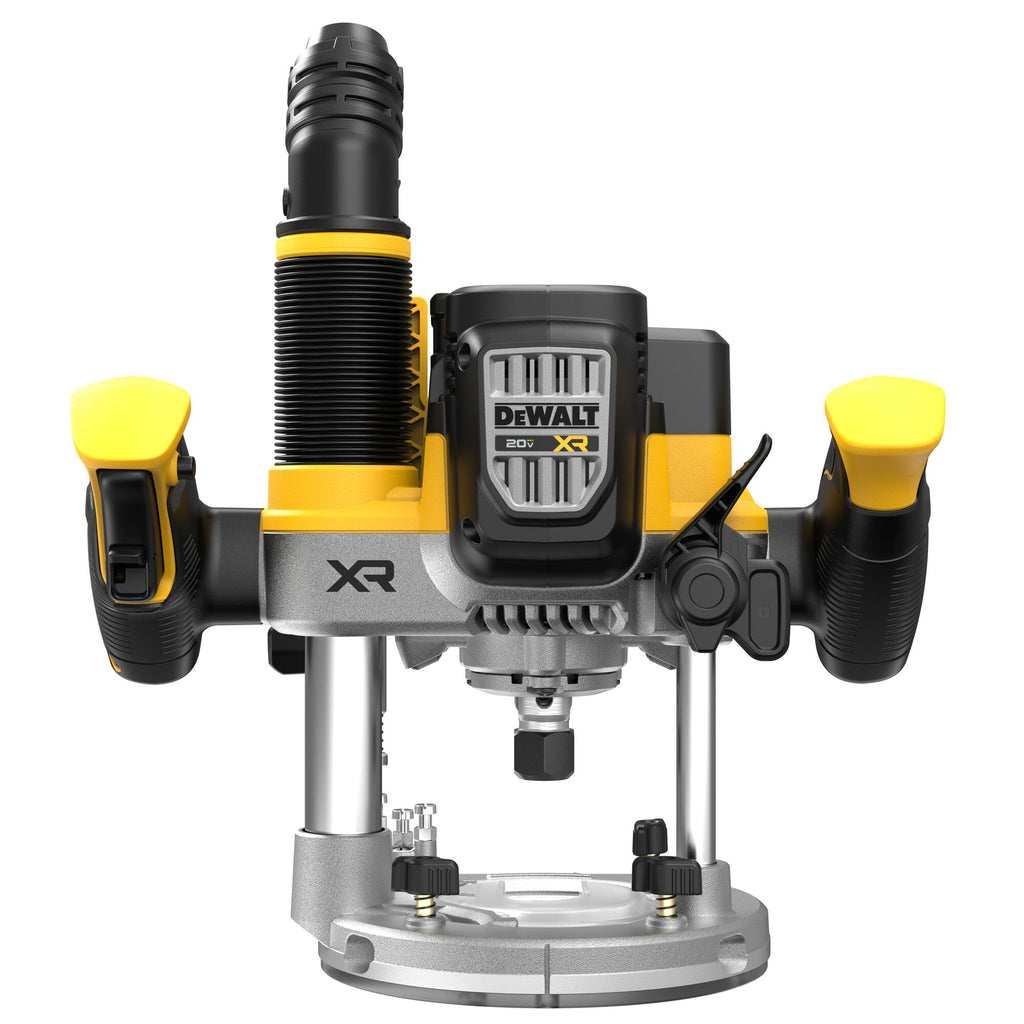

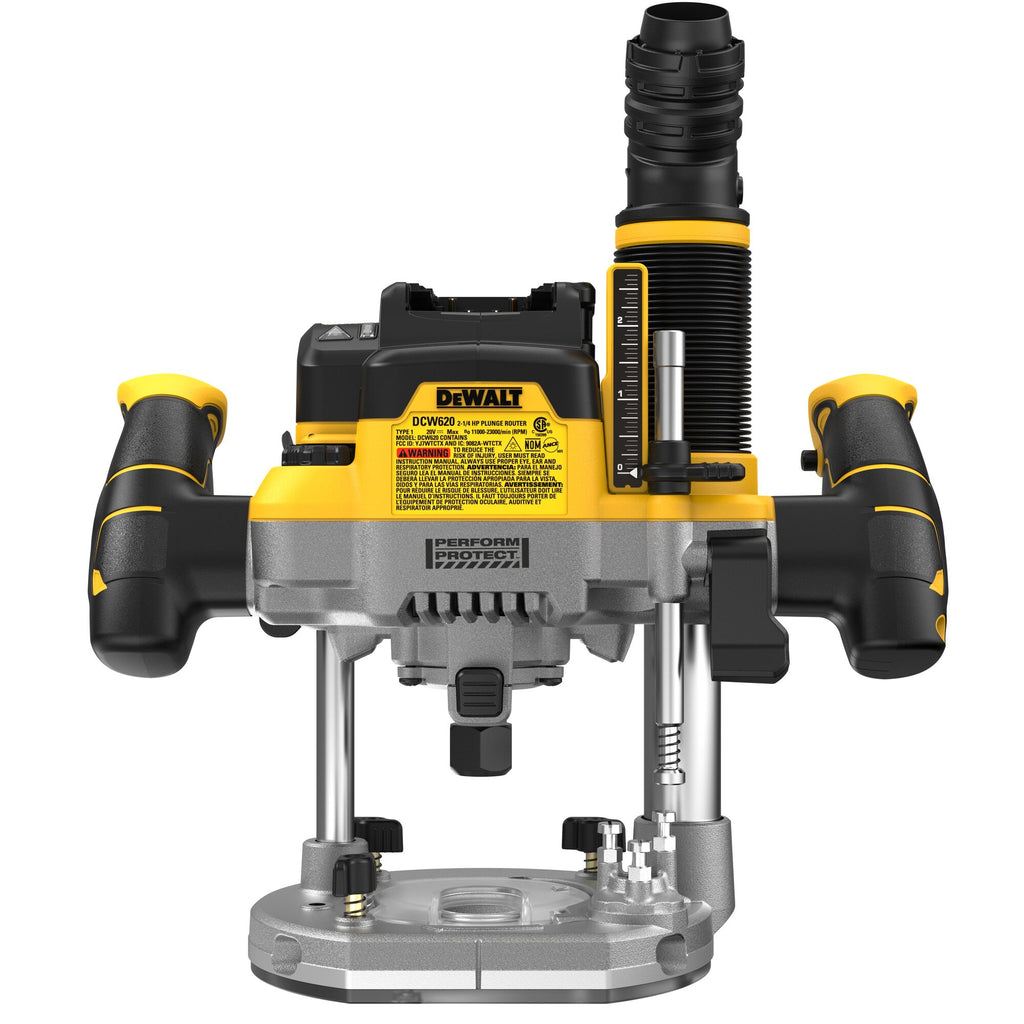

The world's first 20V MAX* cordless 2-1/4 Peak HP dedicated plunge router delivers consistent cutting performance without the hassles of a cord. From meticulous edgework to aggressive plunge cuts, the 20V MAX* XR®2-1/4 Peak HP Plunge Router (battery and charger sold separately) features a 2-1/4 peak horsepower brushless motor that seamlessly handles bits up to 2-1/2 in. in diameter. The variable speed dial helps maximize user control while maintaining constant speed under load. This router can complete up to 256 linear feet routing 5/8 in. roundovers in pine on a single charge† and helps to maintain a clean workspace with integrated dust collection with AirLock™ compatibility. Designed for tough jobsites, the PERFORM & PROTECT™ ANTI-ROTATION system senses the motion of the tool and shuts it down if the motion is excessive. Battery & Charger Sold Separately
Features
- Our Most Powerful 20V MAX* Cordless Router** - Take on tough applications without the hassle of a cord.
- Help Maximize Productivity - Complete up to 256 linear feet routing 5/8 in. roundovers in pine on a single charge (using DCBP520 battery sold separately).

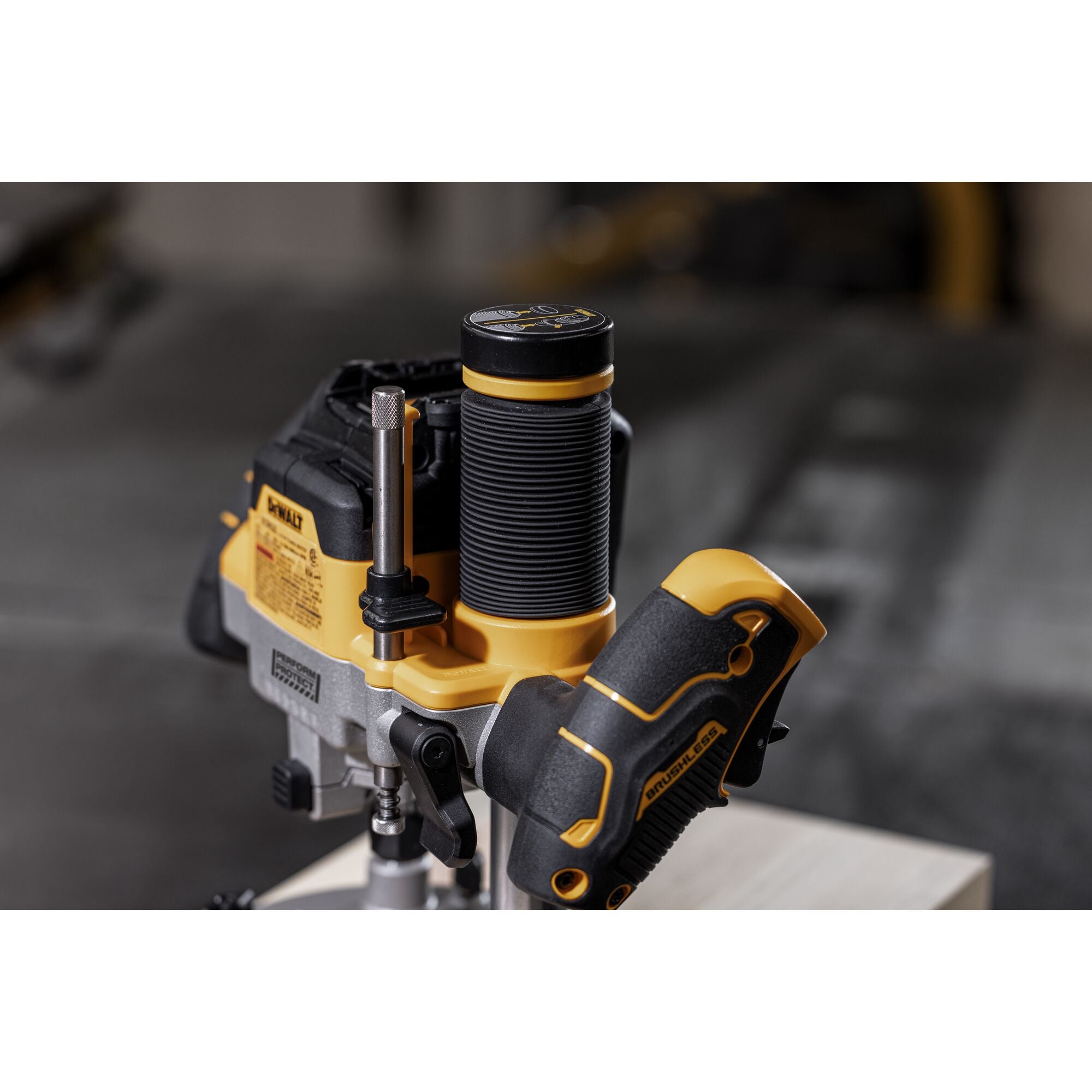

- Integrated Dust Collection With AIRLOCK™ Compatibility - Collects up to 97% of dust cutting grooves in particleboard using DCBP520 battery and DWV015 dust extractor (battery and extractor sold separately)
- Help Maximize Control - Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.

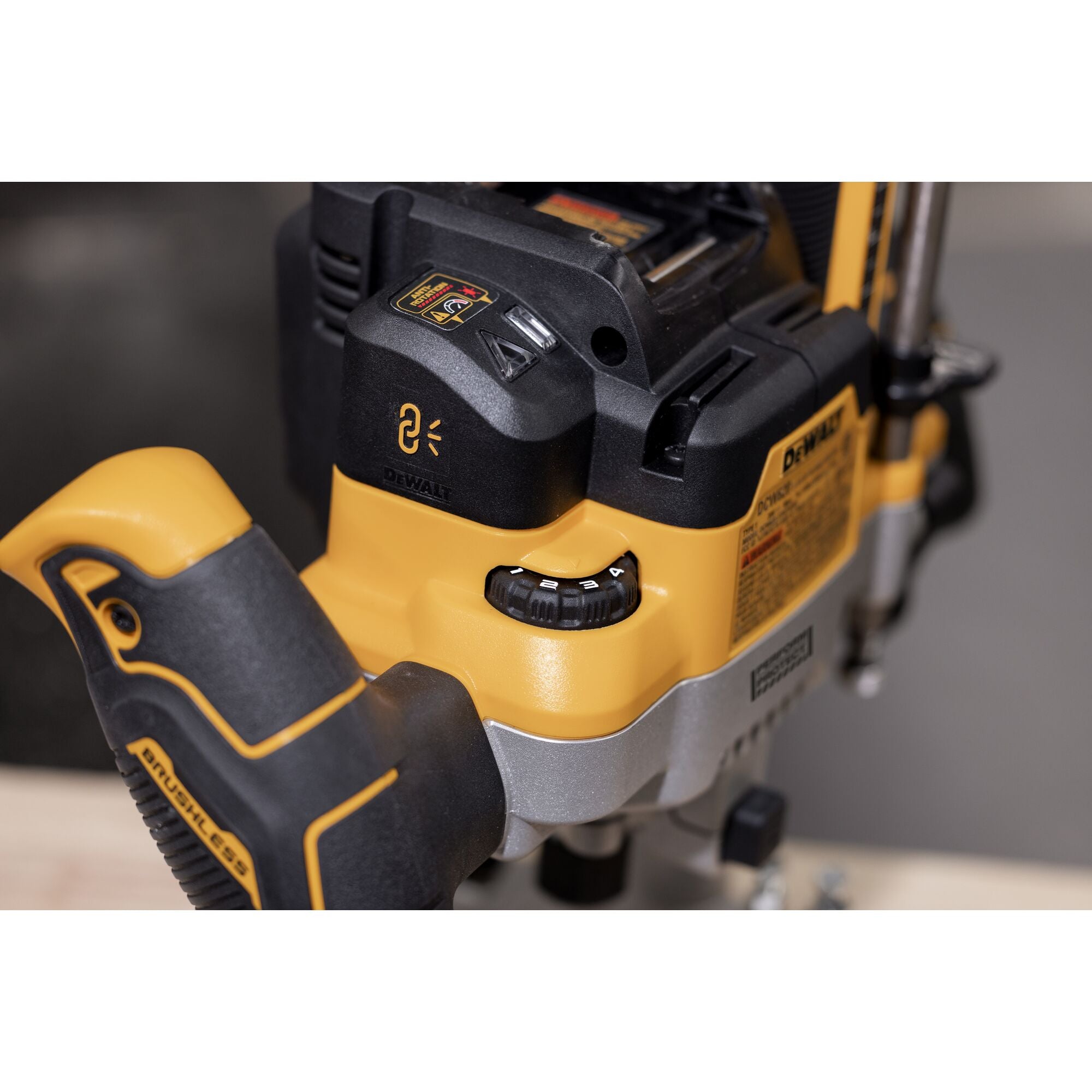

- Versatile Performance - Quickly match the speed of the router to the application at hand with the variable speed dial with constant speed under load that offers (no-load) 11,000-23,000 RPMs.
- Adjustable Turret Stop - Make quick depth adjustments with the 3-position adjustable turret stop.
- Tool-Free Depth Adjustment System - Quickly and accurately setup with the depth adjustment scale, depth stop, micro-fine depth stop adjuster, and micro-fine height adjuster.
- Tool-Free Plunge Lock Lever - Seamlessly engage and disengage the lock lever without having to remove hands from handles.
- Dual LED - Helps provide additional illumination of the work surface for bit visibility.
- Balanced Design - Get precise routing performance with a compact design of 11.5 in. in height, weighing only 8 lbs. (tool only).
- Part Of Our Best Performing Line Of 20V MAX* Power Tools – Innovative power tools designed to deliver certainty for the world’s toughest pros.
Applications
- Dados, Grooves, Flutes
- Edge Profiling
- Inlays
- Flush Trimming
- Rabbeting
- Mortising
- Doweling
Includes
- (1) 20V MAX* XR® 2-1/4 Peak HP Plunge Router
- (1) 1/4 in. (6.4mm) Collet With Nut
- (1) 1/2 in. (12.7mm) Collet With Nut
- (1) Wrench
- (1) Dust Cap
- (2) Dust Shield
- (1) Dust port w/ AIRLOCK™ Compatibility
- (1) Chip Collector
- (1) Centering Cone
- (2) Sub-Base
- (1) 30mm Guide Bushing
Specifications
|
Collet Diameter [Imperial]
|
0.5 in
|
|
No Load Speed (RPM)
|
23000
|
|
Product Height [Metric]
|
292 mm
|
|
Product Height [Imperial]
|
11.5 in
|
|
Product Weight [Metric]
|
3.62 Kg
|
|
Collet Diameter [Metric]
|
12.7 mm
|
|
Max. Cutter Diameter [Imperial]
|
2.5 in
|
|
Max. Cutter Diameter [Metric]
|
63.5 mm
|
|
Power Source
|
Cordless
|
|
Is it a Set
|
No
|
|
Product Weight [Imperial]
|
8 lbs
|
|
Power
|
1700 W
|
