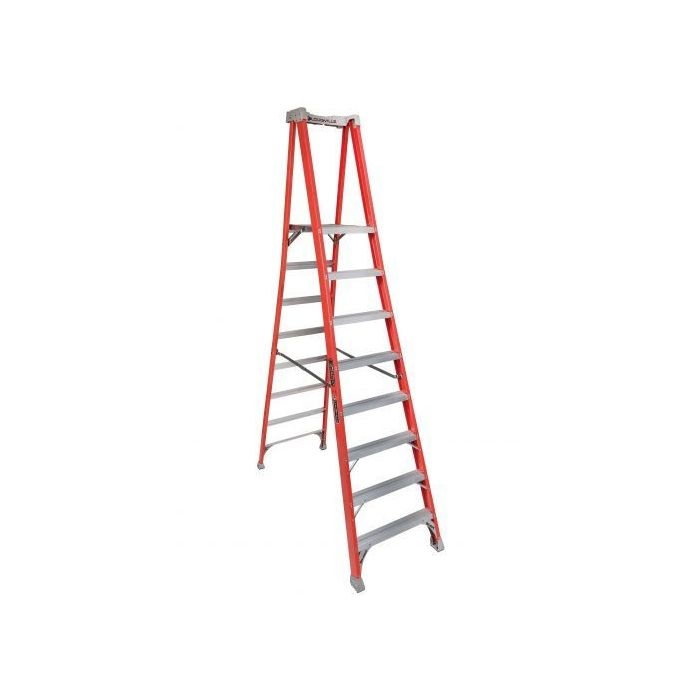

The Louisville FXP1708 Pinnacle Pro is an 8 ft fiberglass platform ladder built for professional jobsite use. Rated Type IA for a 300 lb load capacity, it combines a spacious work platform with a 30 in extended handrail for a secure three-sided working area and convenient tool-belt-height support.
Key Features
- Type IA, 300 lb load capacity
- 30 in extended handrail from platform to top
- 30% larger platform area for added comfort and room to work
- ProTop™ with multiple tool slots and magnet
- SHOX™ impact absorption system
- Raptor Boot™ slip-resistant feet with non-marring tread
- Double-rivet step construction and wide back braces
- Meets or exceeds ANSI and OSHA requirements
Specifications
- Model: FXP1708
- Material: Fiberglass
- Number of steps: 8
- Maximum standing height: 7 ft 7 in
- Maximum reach: 147 in
- Step depth: 3 in
- Platform: 14.5 in W x 17.625 in D
- Open dimensions: 121.75 in H x 30.75 in W x 70 in D
- Closed dimensions: 128 in H x 30.8 in W x 10 in D
