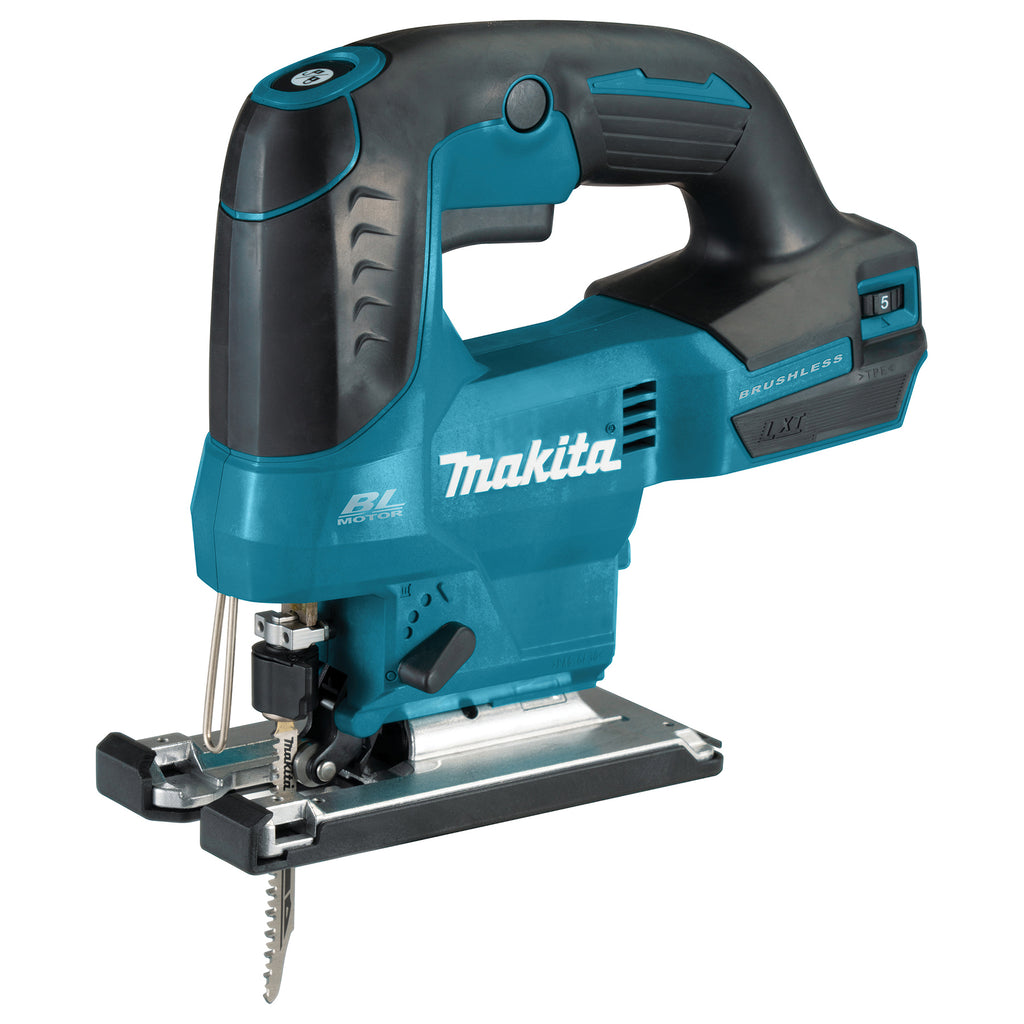

The Makita 18V LXT Brushless Jig Saw (model DJV184Z, tool only) is ideal for professional woodworkers, cabinetry makers, specialized residential construction workers and any pro-contractor seeking a best-in-class cordless jig saw. The DJV184Z seamlessly combines precision and power with the efficiency of brushless in a more compact design. The DJV184Z has 3 orbital settings plus straight cutting for faster and more accurate cuts in a variety of materials. The variable speed control dial (0-3,000 SPM) enables users to match the speed to the application. Electronic controls efficiently use battery energy to match the changing demands of the application for increased power and speed when needed. The base bevels and locks from 0-degrees to 45-degrees for more precise bevel cuts. Convenience features include a tool-less blade change system, large 2-finger variable speed trigger with lock-on button, and dual LED lights to illuminate the work area.
Features:
- 18V LXT® BL Cordless Top Handle Jig Saw, 3 Orbital Settings plus Straight Cutting, LED Light
- Top handle type cordless jig saw powered by 18V LXT® Li-Ion battery and developed based on model JV103D
- High cutting performance thanks to our 18V LXT® platform
- Due to using the same mechanical section as used for model JV103D of our 12Vmax CXT platform, DJV184 achieves not only compact and lightweight design but also cutting efficiency similar or superior to that of DJV180 in the main target application of thin material cutting
- Compact and lightweight for reduced operator fatigue
- BL motor delivers high power
- Variable speed control by trigger helps the user adjust the speed by pulling the trigger gradually when aligning the blade precisely with the chalk lines
- Lock on button for continuous operation
- Soft start allows for accurate landing of the blade on the surface of the workpiece

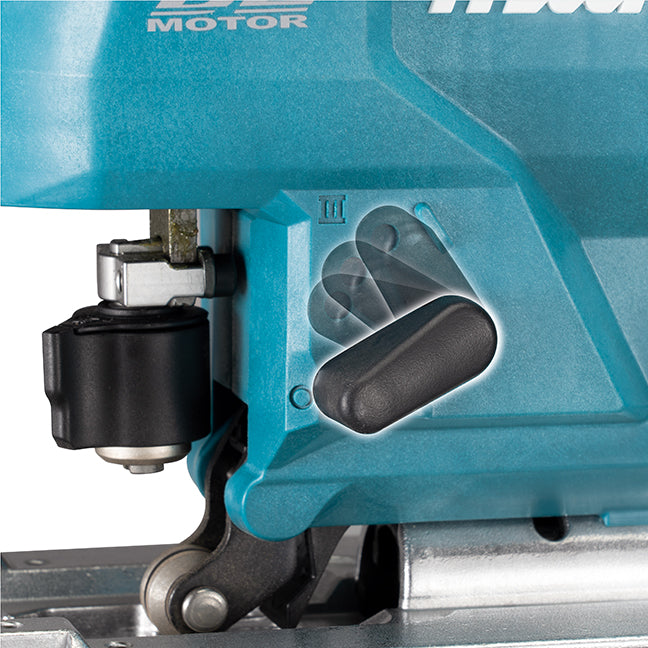

- 3 orbital settings plus straight cutting for use in a wide range of materials
- Soft no-load rotation reduces vibration and aligns blade with the cutting line easily
- Disabling soft no-load rotation function in operator’s preference
- LED job light (Single LED with light up function during standby mode)

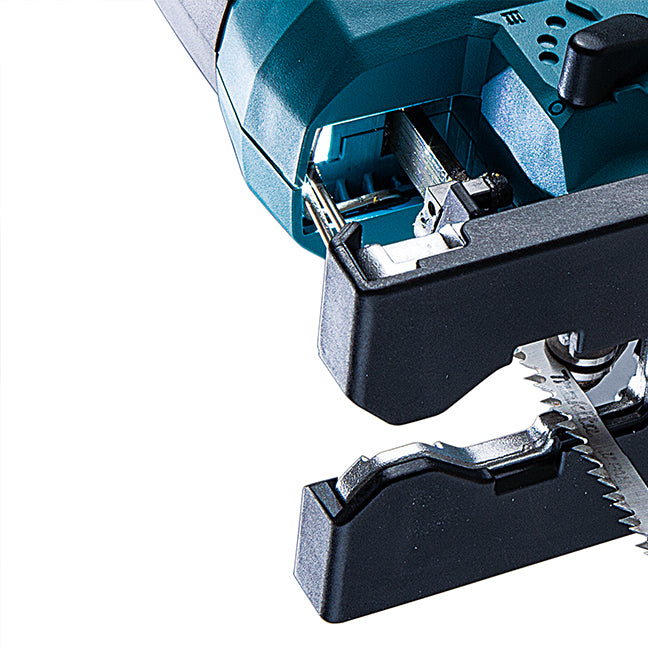

- Toolless blade clamp for easy blade change with one hand
- Ergonomically designed handle with soft grip
- Dust nozzle can be attached for connection to Makita vacuum cleaner
- Electric brake for increased productivity
- Handy rip fence (guide rule) allows you to do extra-accurate straight cuts and circular cuts (optional)
- Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
Type: Brushless
Series: LXT®
Bare Tool/Kit: Tool
Tool Type: Saw
Stroke Length: 7/8 in
Stroke: 0-3000 spm
Capacity: 10 - 135 mm
Voltage Rating: 18 V
Battery Type: Lithium-Ion
Power Rating: 400 W
Handle Type: Ergonomically
Sound Level: 93 dBA
Overall Length: 10-1/4 in
Overall Width: 3 in
Overall Height: 8-1/8 in
Includes: Jig Saw Blade, Hex Wrench, Cover Plate, Dust Nozzle, Dust Cover, Battery, Charger
