Soft Start, Variable Speed Dial, Constant Speed Control, Anti-restart function, SJS II (Super Joint System I
Features
- POWER: Powerful 15 AMP motor delivers more output and variable (2,800 - 11,500) RPM
- DURABILITY: Zig-zag epoxy is applied to the armature for protection from debris and longer tool life
- COMFORT: SJS™II technology is a leaf spring and cam gear drive mechanism engineered to reduce vibration

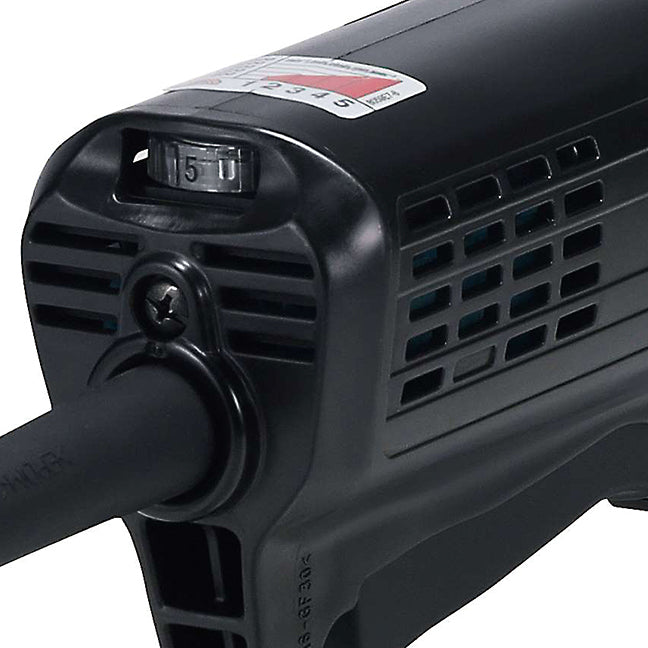

- VERSATILITY: Variable speed control dial enables user to match the speed to the application
- Vibration absorbing side handle provides increased comfort on the job
- Electronic controller provides constant speed control which automatically applies additional power to the motor to maintain speed under load
- Electronic Controller provides soft start which is designed to suppress start-up reaction for smooth start-ups and longer gear life
- Electronic Controller provides an electronic current limiter which helps protect the motor from overload in high torque applications
- Variable speed control dial enables user to match the speed to the application
- Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
- Motor fan is designed with enlarged fins for increased air flow and a cooler running motor
- Complete zig-zag epoxy is applied to both sides of the armature coil and a powder coating to the field for protection from debris and longer tool life
- Spiral bevel gears for smoother rotations and a more efficient transfer of energy
- Fully aluminum constructed gear housing provides superior gear alignment and smooth transmission for increased durability and comfort

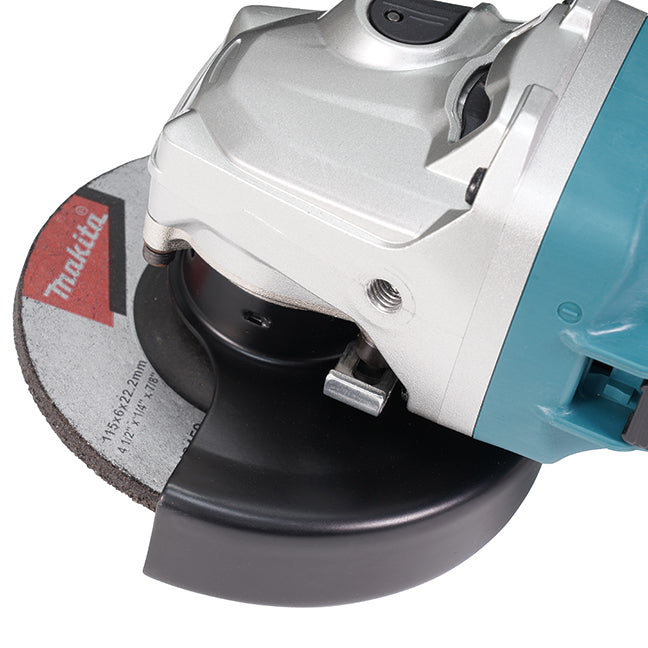

- "Tool-less" wheel guard for easy adjustment

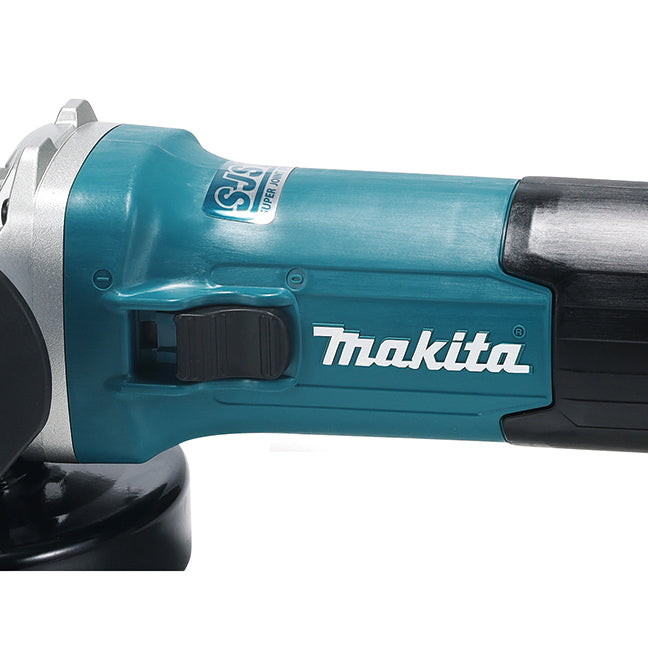

- Slide switch with lock-on for continuous use
Includes
- (1) 5" Depressed Centre Wheel (1Ea. A-95962-25)
- (1) Clip-On Cut Off Wheel Guards (199710-5)
- (1) Wheel Cover (141R72-5)
- (1) Side Handle (141J72-7)
- (1) Lock Nut Wrench 28 (782412-6)
- (1) Inner Flange (224399-1)
- (1) Lock Nut 5/8"-45 (224486-6)
Shipping Dimensions (Length x Width x Height) & Weight : 17.68 In. X 7.4 In. X 6.02 In. Weight : 9.17 Lb.
Specifications
| Max. Capacities |
Grinding Wheel 5" (125 mm), Cut-off Wheel 5" (125 mm), Wire Wheel Brush 5" (125 mm) |
| Spindle Thread |
5/8" - 11 UNC |
| No Load Speed |
2,800 - 11,500 RPM |
| AMPS (120 V) |
15.0 A |
| Vibration Level |
7.9 m/s² |
| Noise Level |
93 dB(A) |
| Overall length |
12-7/8" (326 mm) |
| Net Weight |
5.7 lbs (2.6 kg) |
