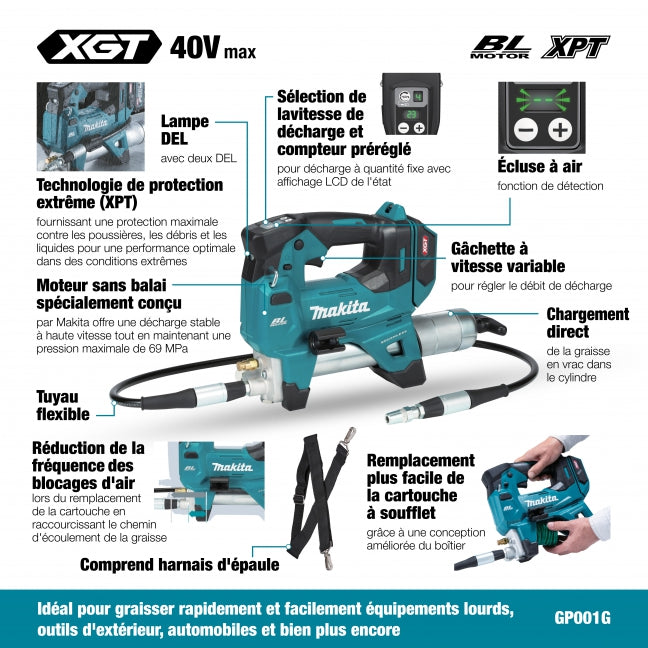

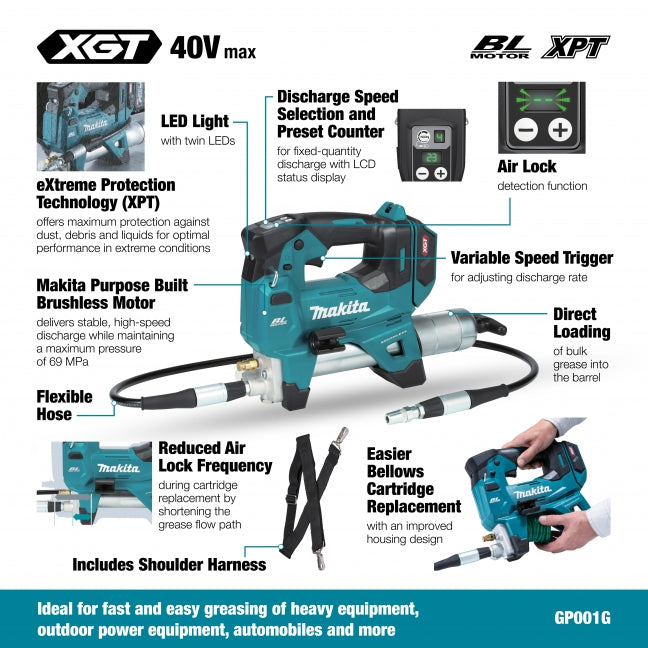

Features

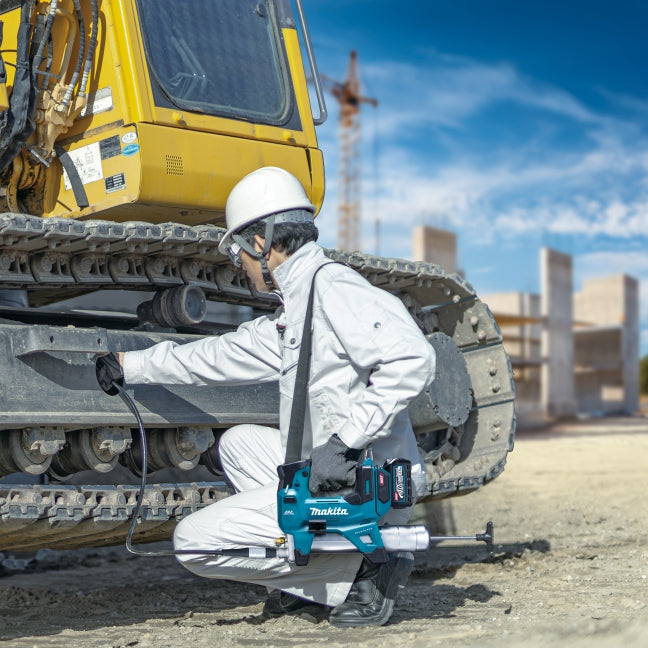

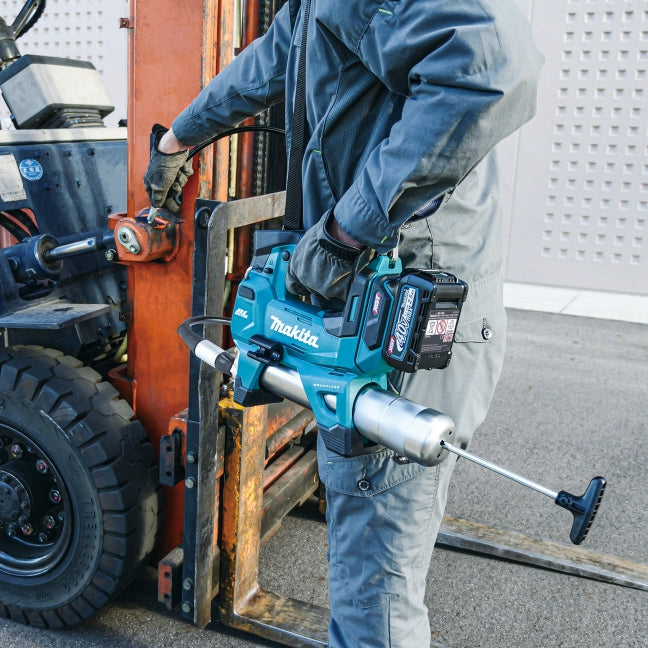

- Brushless DC motor designed to deliver stable, high-speed discharge even in operations with gradually increasing lubrication pressure, such as crawler track tensioning during construction machinery maintenance.

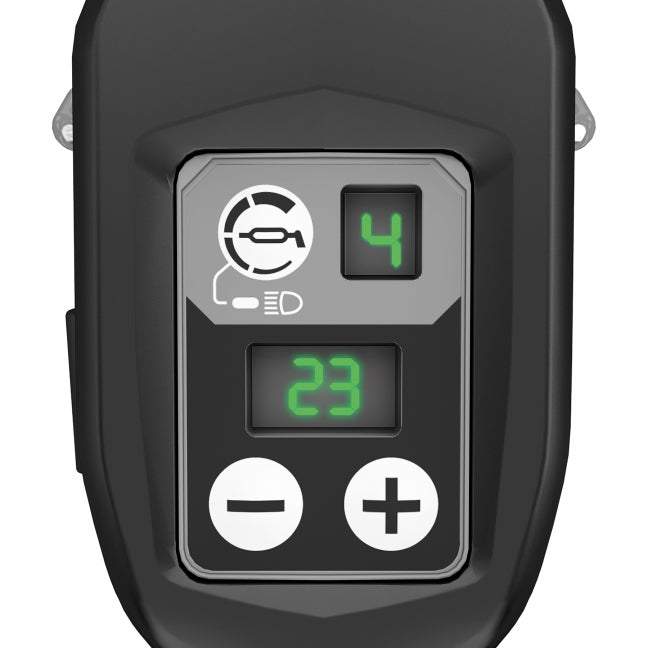

- Discharge speed selection and preset counter for fixed-quantity discharge with LCD status display
- Accepts 14.5 oz. grease cartridges or up to 16 oz. of bulk grease
- Variable speed trigger allows operator to adjust dispensing speed based on application
- Integrated constant speed control for stable discharge operation

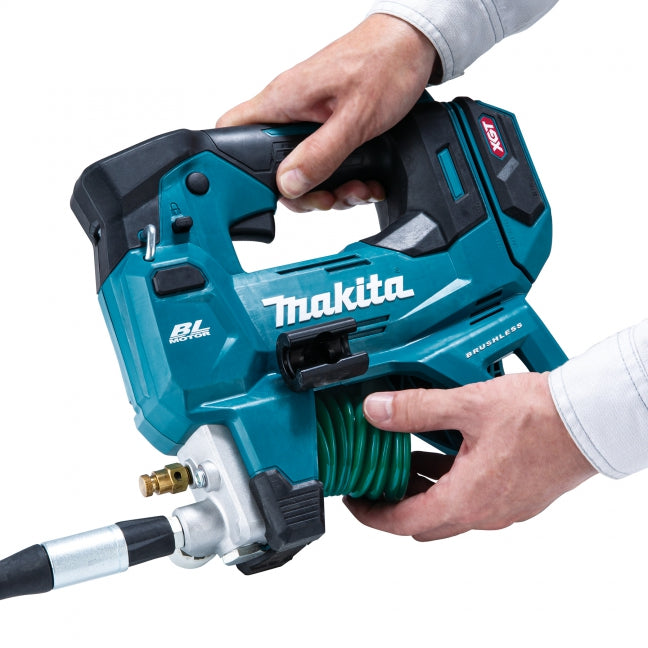

- Improved housing design for easier bellows cartridge replacement
- Flow optimized grease flow path for reduced air lock frequency during cartridge replacement

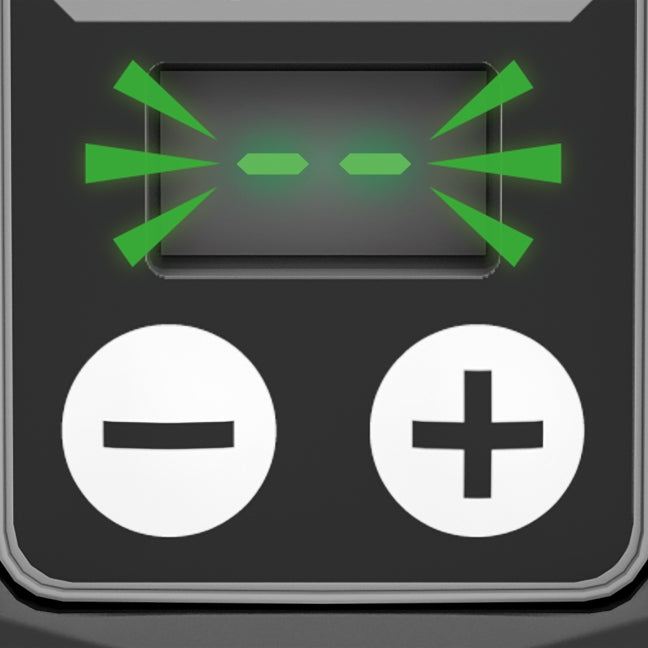

- Air lock detection function

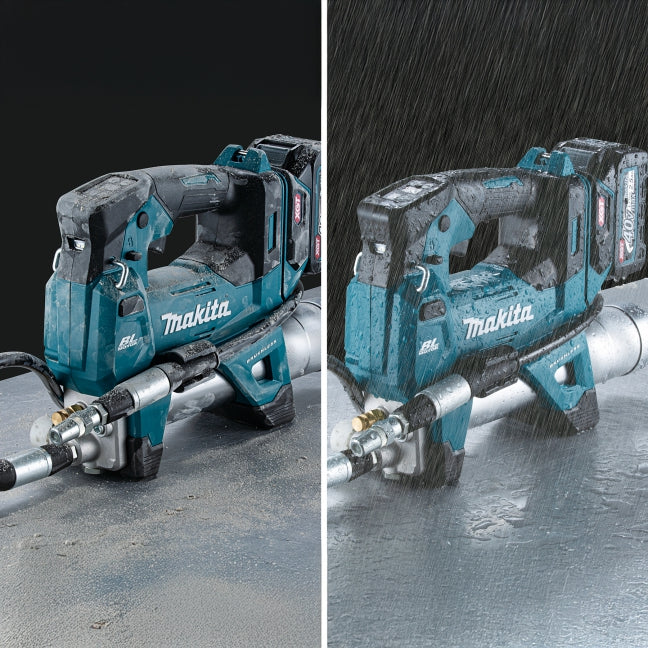

- XPT-compatible for enhanced dust and water resistance in harsh outdoor environments

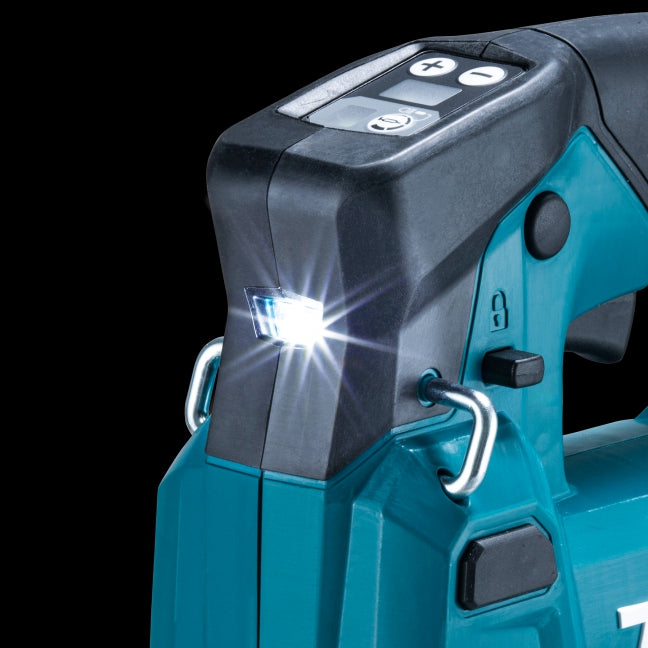

- Twin LED job light with independent on/off switch illuminates work area for easy operation in dark spaces
- Flexible hose for easy operation in tight spaces

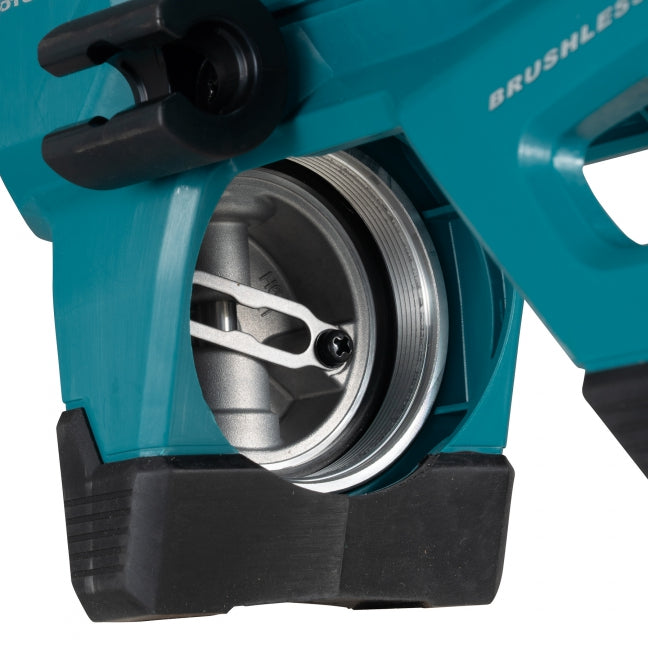

- Optional direct loading of bulk grease into the barrel
- Ergonomically designed rubberized grip for increased comfort and control
Items Included: Batteries and Charger Sold Separately. Flexible Hose (1916S5-1), Shoulder Harness (166094-6)
Shipping Dimensions (Length x Width x Height) & Weight : 22.2 In. X 5.2 In. X 10.7 In. Weight : 12.37 Lb.
Specifications
| Battery Capacities: |
40Vmax Li-Ion |
| Grease Capacity Barrel A |
Cartridge / Bulk: 14.5 / 16.0 oz (410 / 455 g) |
| Hose Length |
47-1/4" (120 cm) |
| Maximum Operating Pressure |
69 MPa (10.000 psi) |
| Vibration Level |
2.5m/s² |
| Noise Level |
81 dB(A) |
| Overall Length |
15-1/2" (395 mm) |
| Net Weight |
11.5 lbs - 14.3 lbs (5.2 kg - 6.5 kg) |
