Features
- Brushless DC motor with high power to weight ratio generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
- eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
- Soft start feature gradually increases speed to eliminate start up shock
- Electric brake stops blades 3-5 seconds after trigger is released for increased operator safety
- Anti-restart feature prevents accidental startup of tool during battery changing when switch is locked in the on position
- Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
- Base plate foot protects materials and blade from damage
- Three chamfering grooves enables quick and easy chamfering of corners

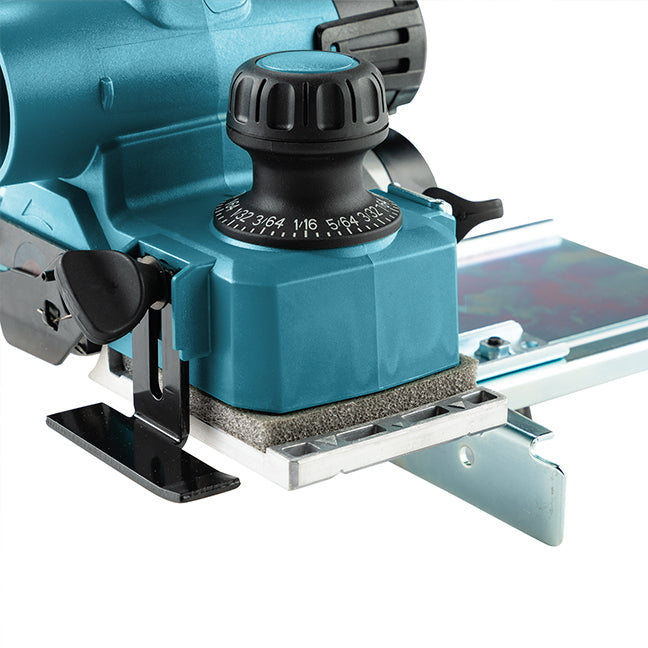

- Depth adjustment knob with click stops for precision planing applications
- Large lock-off safety lever prevents accidental start up
- Left or right side chip ejection or dust collection using dust bag or Makita dust extractor
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation

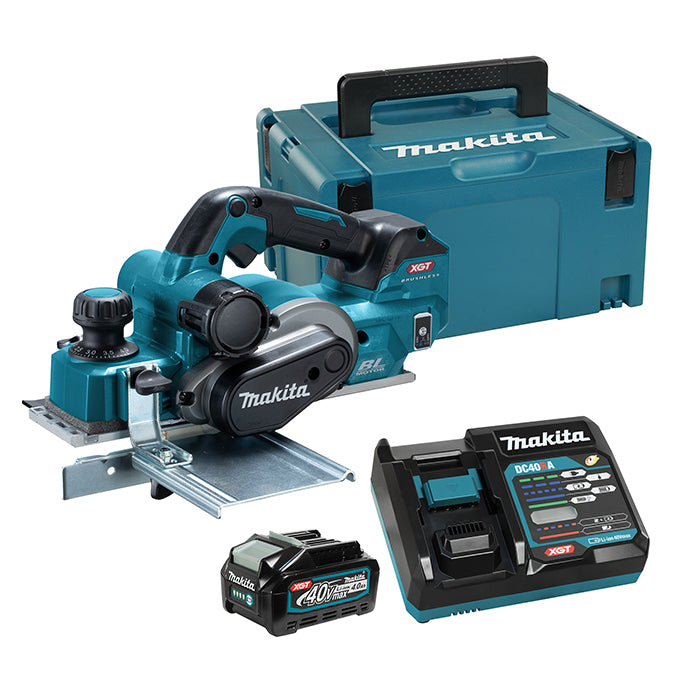

Items Included: 40Vmax XGT (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), Battery Cover (412393-7), 3-1/4" C.T. Mini Planer Blade (A-82921), Blade Gauge Assembly (191C19-9), Guide Rule (191C23-8), Depth Guide (342390-8), Socket Wrench 9 (782209-3), Interlocking Case (197212-5)
Shipping Dimensions (Length x Width x Height) & Weight : 16.5 In. X 12.56 In. X 9.92 In. Weight : 19.84 Lb.
Specifications
| Battery Capacities |
40Vmax XGT |
| No Load Speed |
15,000 RPM |
| Maximum Capacities: |
|
| Planing Width |
3-1/4" (82 mm) |
| Planing Depth |
5/32" (4 mm) |
| Shiplapping |
1" (25 mm) |
| Vibration Level |
4.3 m/s² |
| Noise Level |
87 dB(A) |
| Overall Length |
15-1/8" (385 mm) |
| Net Weight |
8.9 lbs (4.0 kg) |
