Features
- AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools
- Independent AWS push-button switch allows operator to run dust extractor when mitre saw is not running for maximum dust collection and cleaning after operation
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- “Zero clearance” rail forward design enables saw to be placed against wall to maximize effective work space
- Gear reduction system maximizes cutting capacity
- Sliding left and right side fences can be adjusted outwards when bevel cutting or inwards for increased support of small or delicate materials
- Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
- Soft start feature gradually increases speed to eliminate start up shock
- Constant speed control maintains cutting speed under heavy load
- LED cut line indication enables easy and precise alignment of blade and material for fast and accurate cutting with no adjustment required
- Bevel capacity of 48° left or right

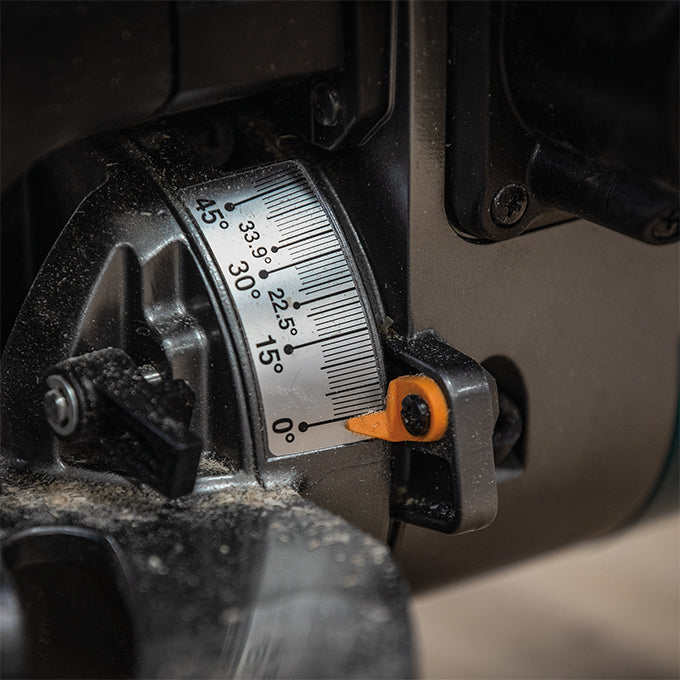

- Mitre capacity of 60° left or right with positive stops at 0°, 15°, 22.5°, 31.6° & 45°
- Easy to operate mitre angle lock with free spin releasing and locking levers
- Improved dust collection with dual dust collection ports
- 2-stage safety switch for increased operator safety
- Ergonomic vertical soft rubber grip design for vibration absorption and comfortable operation

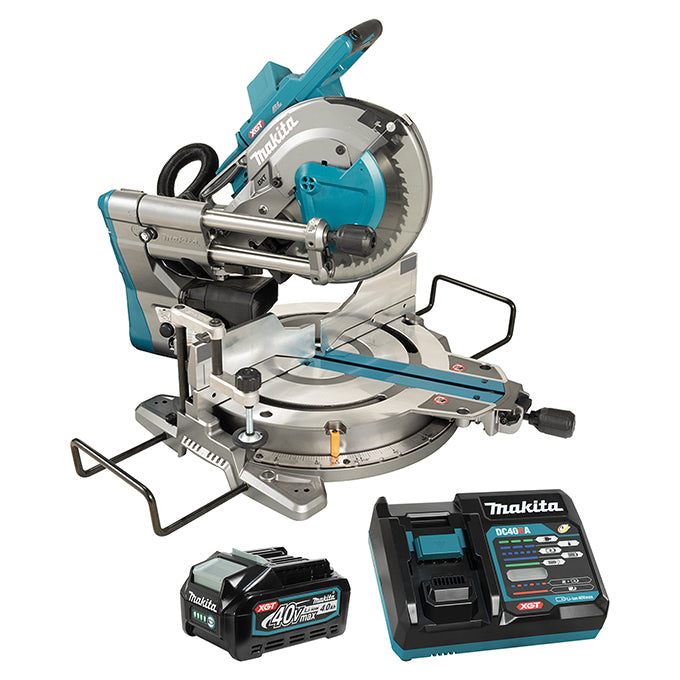

Items Included: 40Vmax XGT (4.0Ah) Li-Ion Battery BL4040 (BL4040), Rapid Charger (DC40RA), 10" C.T. Blade 45T (B-62103), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Holder 200 (327095-1), Hex Wrench 6 (781044-6)
Shipping Dimensions (Length x Width x Height) & Weight : 32.44 In. X 22.28 In. X 20.87 In. Weight : 81.4 Lb.
Specifications
Battery Capacities |
40Vmax XGT |
Blade Diameter |
10" (255 mm) |
Arbor |
5/8" (15.88 mm) |
No Load Speed |
3,600 RPM |
Vibration Level |
2.5 m/s² |
Noise Level |
91 dB(A) |
Dimensions (L x W x H) |
31-3/4" x 25-3/8" x 26" (805 mm x 644 mm x 660 mm) |
Net Weight |
59.4 lbs (26.9 kg) |
