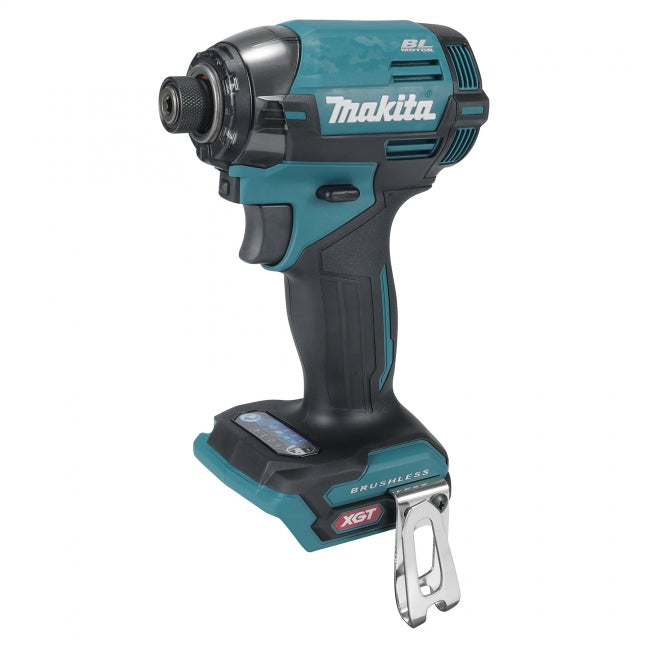

MAKITA TD002GZ01 40Vmax XGT Brushless 1/4" Impact Driver, Tool Only
Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 TEK-modes, 1 Wood mode, 3 Bolt modes) eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity High Power Impact Driver Delivers 1,950 in.lbs (220 Nm) Of Torque
Features
- 40Vmax XGT Brushless Cordless Impact Driver, Tool Only
- High Power Impact Driver Delivers 1,950 in.lbs (220 Nm) Of Torque
- More comfortable operation in a wide range of applications from light-duty screw tightening to heavy-duty metal fastening

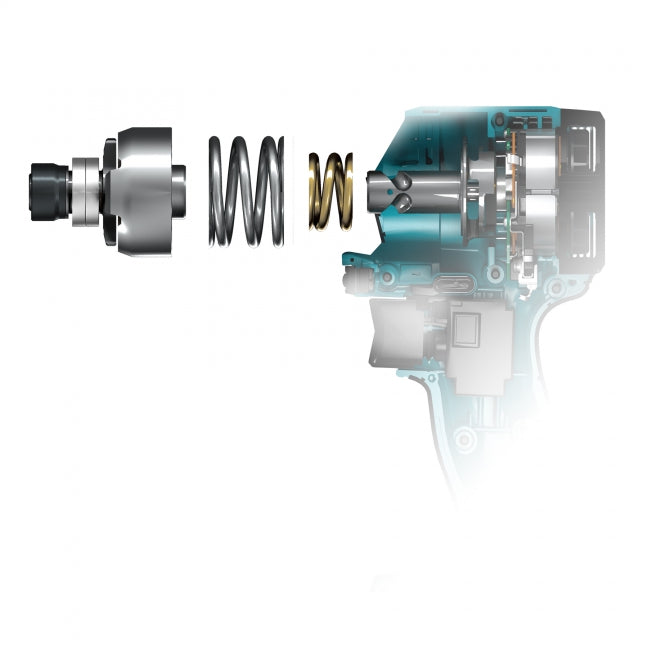

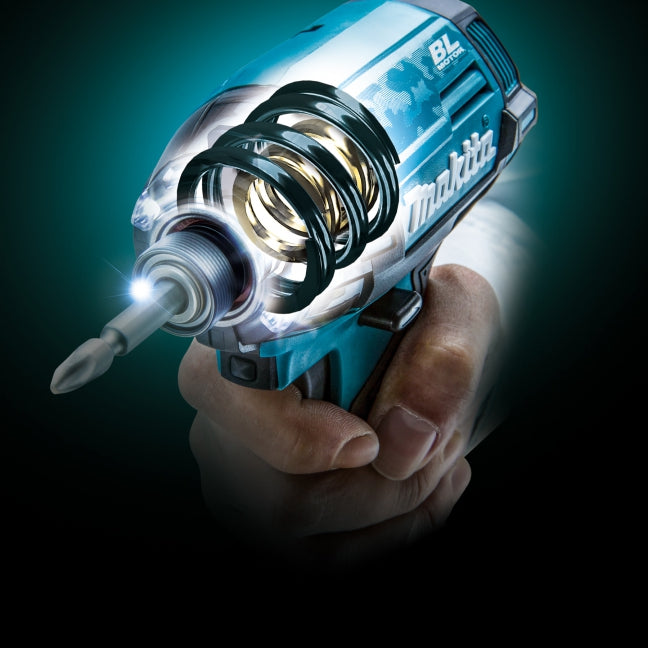

- Dual spring technology: The hammer is designed to be driven by a dual spring unit consisting of two types of springs with different load capacities.
- The hammer is driven by one spring in light-duty operation and by two springs in heavy-duty operation. This means the impact power is adjusted according to the workload, providing added comfort in a wide range of applications from delicate screw tightening to heavy-duty metal fastening
- This dual spring technology suppresses increase in recoil and vibration, which occur after the tool starts impact blow

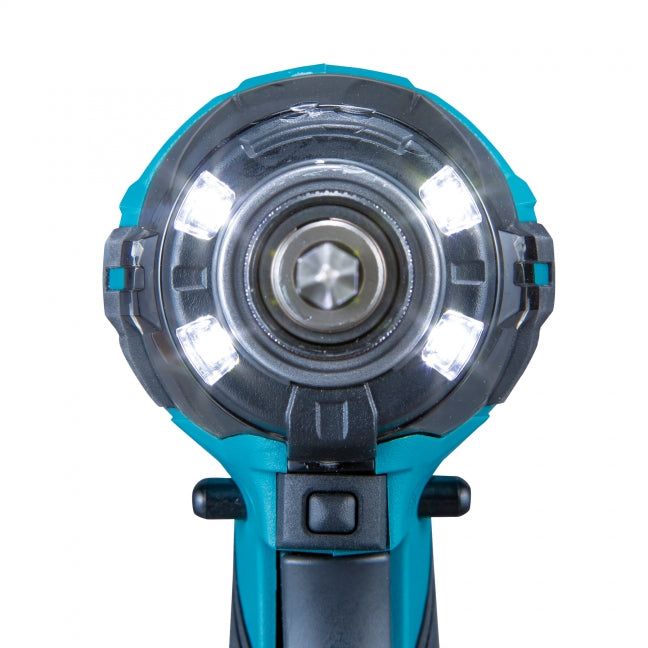

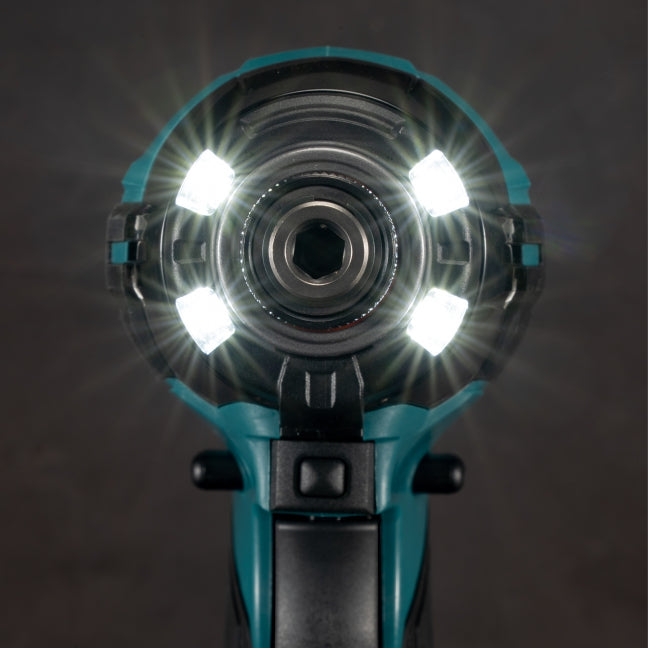

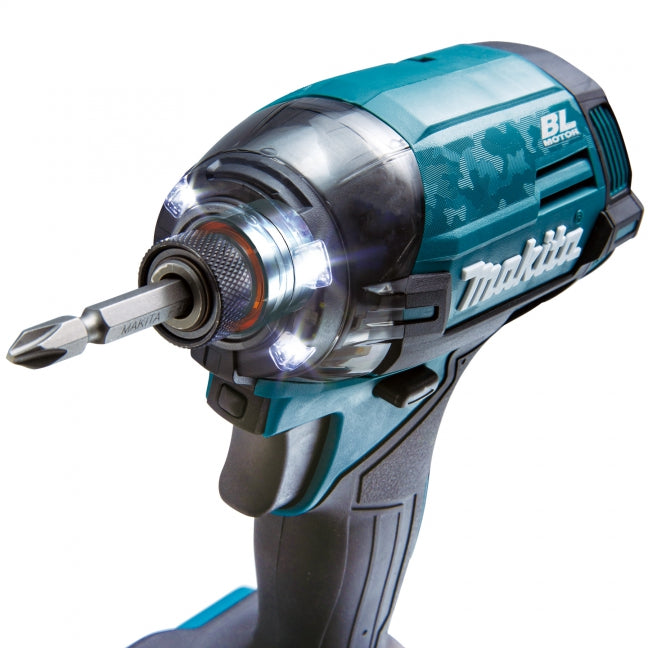

- 4 LEDs on the front of tool head delivers brighter illumination on the workpiece and reduces projections that project from both sides of tool head and body
- Higher visibility of the workpiece achieved by using a newly designed LED lens to make the shadow of bit lighter
- LED lights with preglow and afterglow functions and 3 brightness settings
- Increased screw tightening speed compared with current models
- Increased screw tightening speed has been achieved by increasing the number of impacts in Mode 4 (Max impact mode)
- New appearance design by adding unique camouflage pattern
- Light mode: To turn on the light, set F/R change lever in the neutral position and pull the switch trigger. To turn off the light, pull the switch trigger again
- The light turns off automatically one hour after turned on

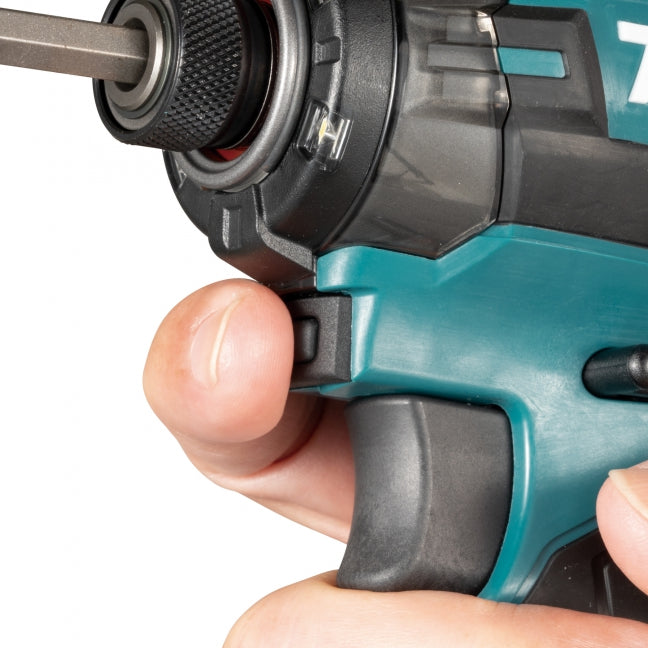

- New one-touch bit installation reduces resistance and allows for easier bit installation
- Genuine solution for high demand industrial users

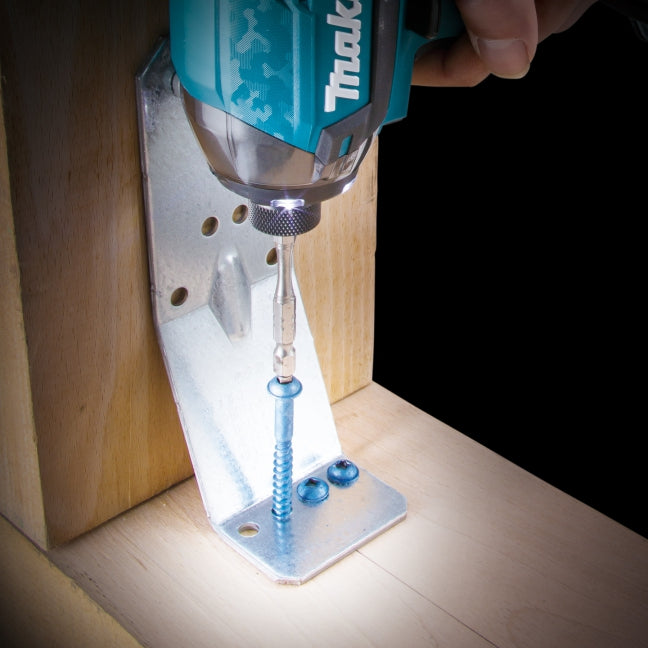

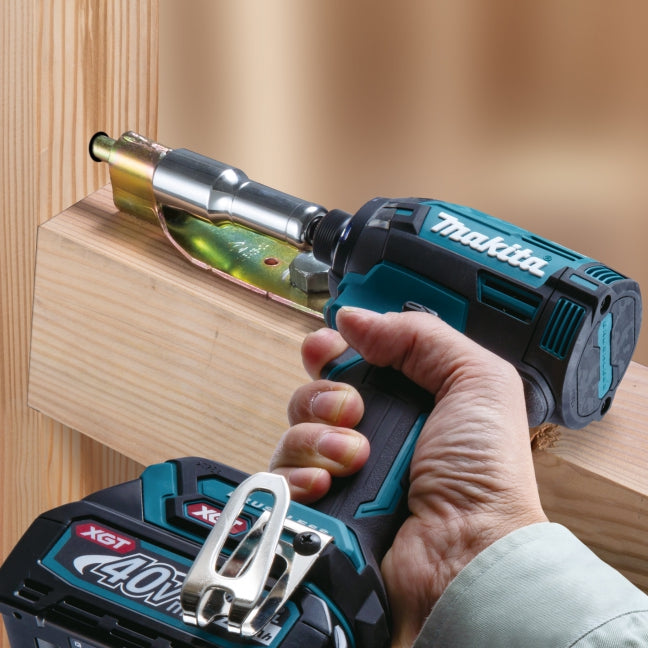

- Excellent ability to perform heavy-duty and continuous tightening such as metal fastening screws or lag screws

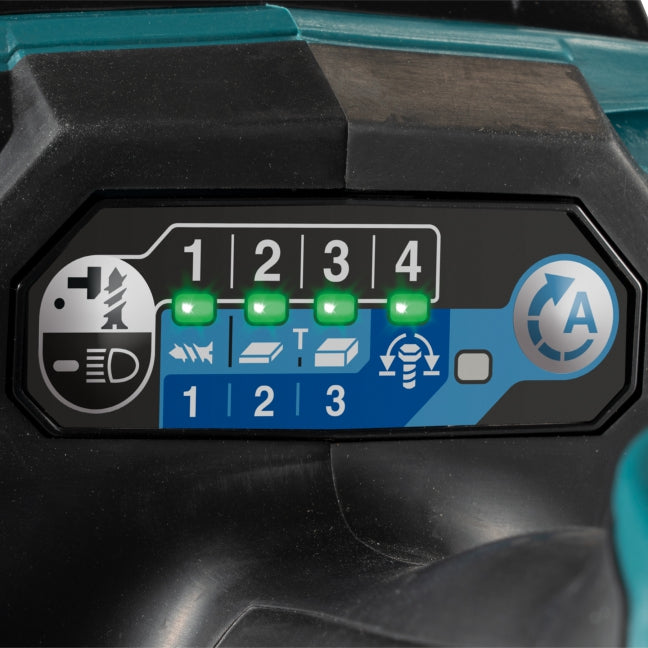

- Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 TEK-modes, 1 Wood mode, 3 Bolt modes)
- Improved bolt modes for more convenience in tightening machine screws
- Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity
- One-touch speed selector provides precise fastening control for a wide range of applications
- Enhanced anvil holder rigidity achieved by changing needle bearings to ball bearing which reduces bit wobbling
- Variable speed control by trigger for precise fastening in a wide variety of applications
- Ergonomically designed handle with rubberized soft grip for increased comfort
- Reversing switch is conveniently located
- Auto-stop in bolt mode (both in Forward/Reverse rotations)
- Electric brake for maximum productivity
- Trigger lock minimizes accidental start-up during transportation.
- Durable, reversible belt clip convenient for temporary tool hanging
- Battery protection circuit protects against overloading, over-discharging and over-heating.
Includes
- Batteries and Charger Sold Separately. + Bit 2-50 (784044-5), Hook (346317-0)
Specifications
| Battery Capacities |
40Vmax Li-Ion |
| Hex Shank |
1/4" |
| No Load Speed |
0 - 3,700/ 3,200/ 2,100/ 1,100 RPM |
| Impacts Per Minute |
0 - 4,600 / 3,600 / 2,600 / 1,400 IPM |
| Maximum Torque |
1,950 in. lbs (220 Nm) |
| Vibration Level |
12.9 m/s² |
| Noise Level |
94 dB(A) |
| Dimensions (L x W x H) |
4-11/16" × 3-3/8" × 7-3/4" (119 mm x 86 mm x 197 mm) |
| Net Weight |
2.3 lbs (1.0 kg) |
