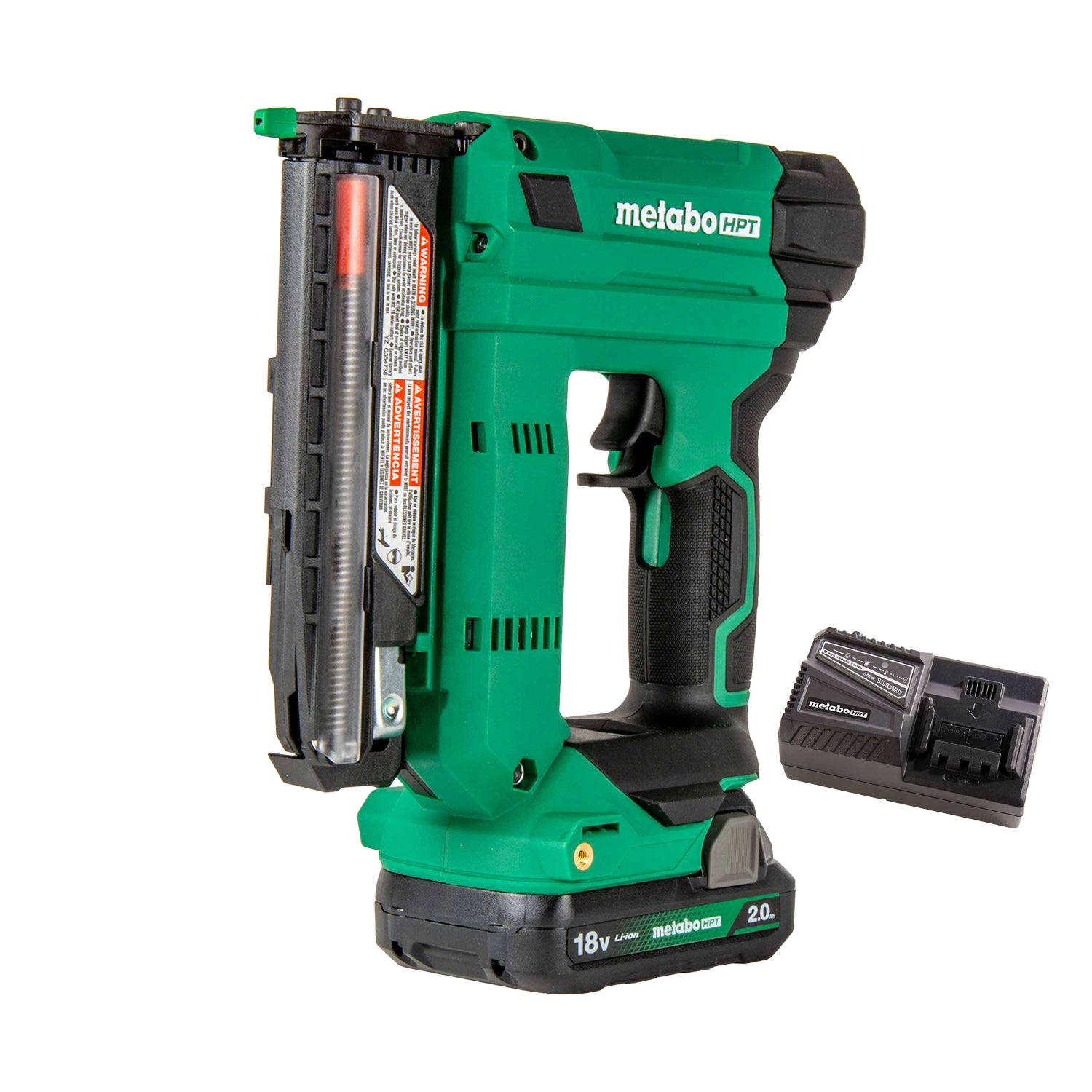

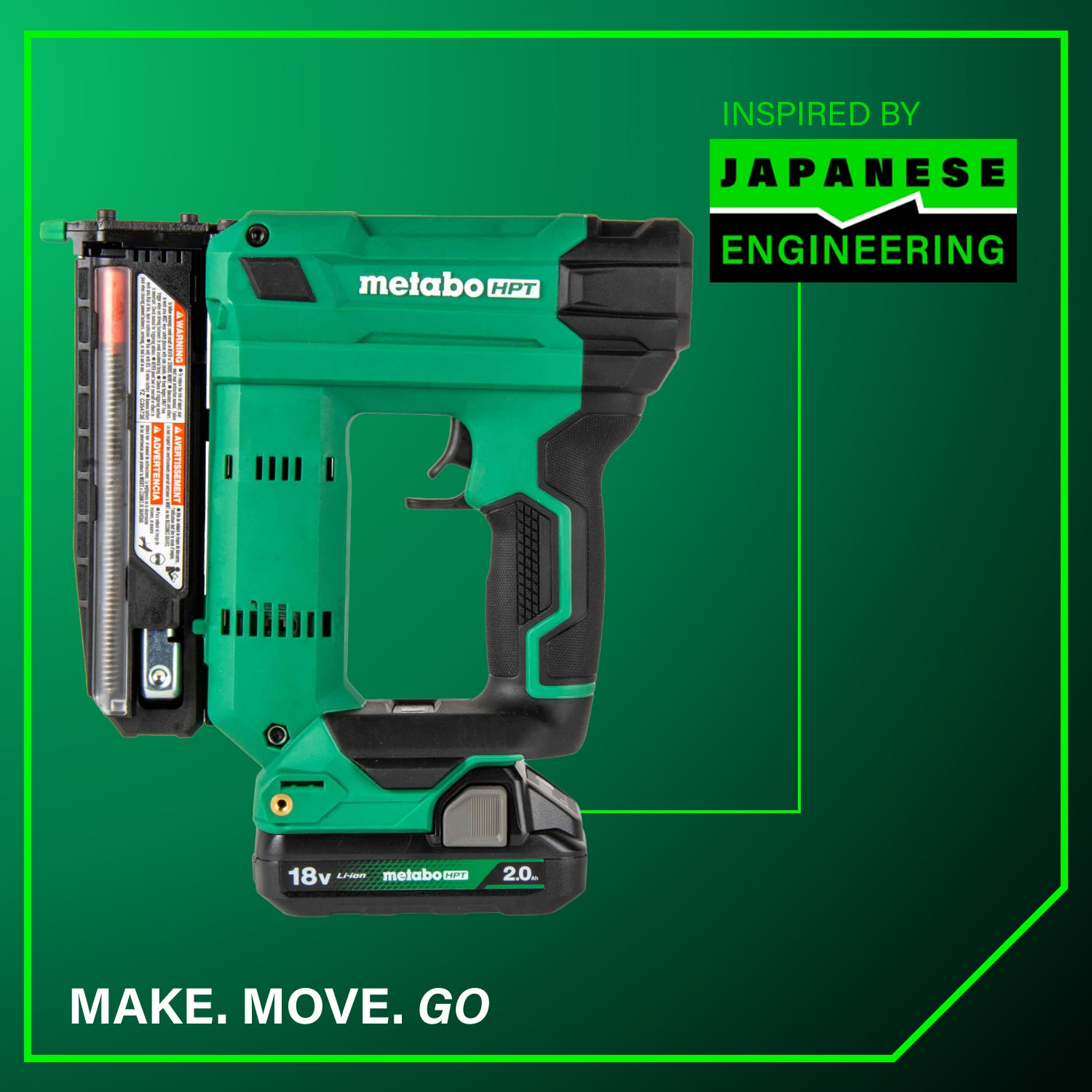

The Pro Preferred Brand of Pneumatic Nailers has launched the NP1835DA, an 18V Cordless 23-Gauge Pin Nailer. This tool allows users to drive up to 1-3/8” 23-Gauge headless pins without the hassle of hoses, providing enhanced mobility. It also incorporates Metabo HPT's innovative low-maintenance Mechanical Spring Drive System.
The NP1835DA is perfect for securing glued wood joints while they dry, holding moldings in place for adjustments prior to permanent fastening, and attaching decorative trim without leaving unsightly marks or large holes to fill before painting. Its fixed nose makes nail placement easier than ever, and the double trigger ensures added safety during operation.
The 18V Cordless 23-Gauge Pin Nailer is part of the expanding MultiVolt System 18-Volt and 36-Volt power tools from Metabo HPT. Go lighter with 18V batteries or go longer with the unique MultiVolt battery that works on both 18V and 36V tools to double your runtime for up to 8.0Ah of runtime per charge for more power.
Features of the 18V MultiVolt Cordless Compact 23-Gauge Compact Pin Nailer
-

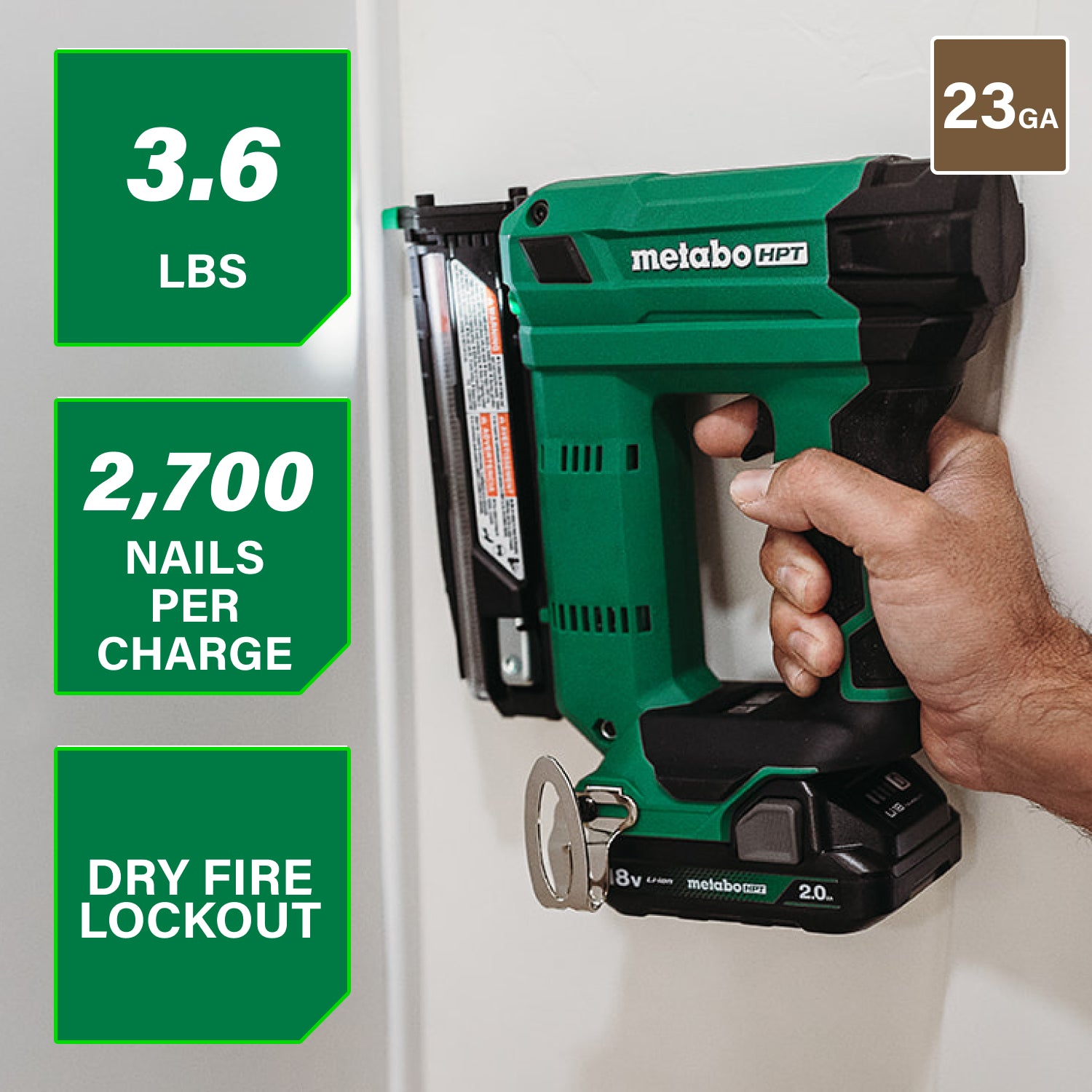

LONG LASTING: 2700 nails per charge using the included compact 18V 2.0Ah Battery
-
MECHANICAL SPRING DRIVE: Provides power to drive up to 1-3/8" 23-Ga headless pin nails
-
PRECISION: Fine tip nose design for nailing into the grooves of any trim
-

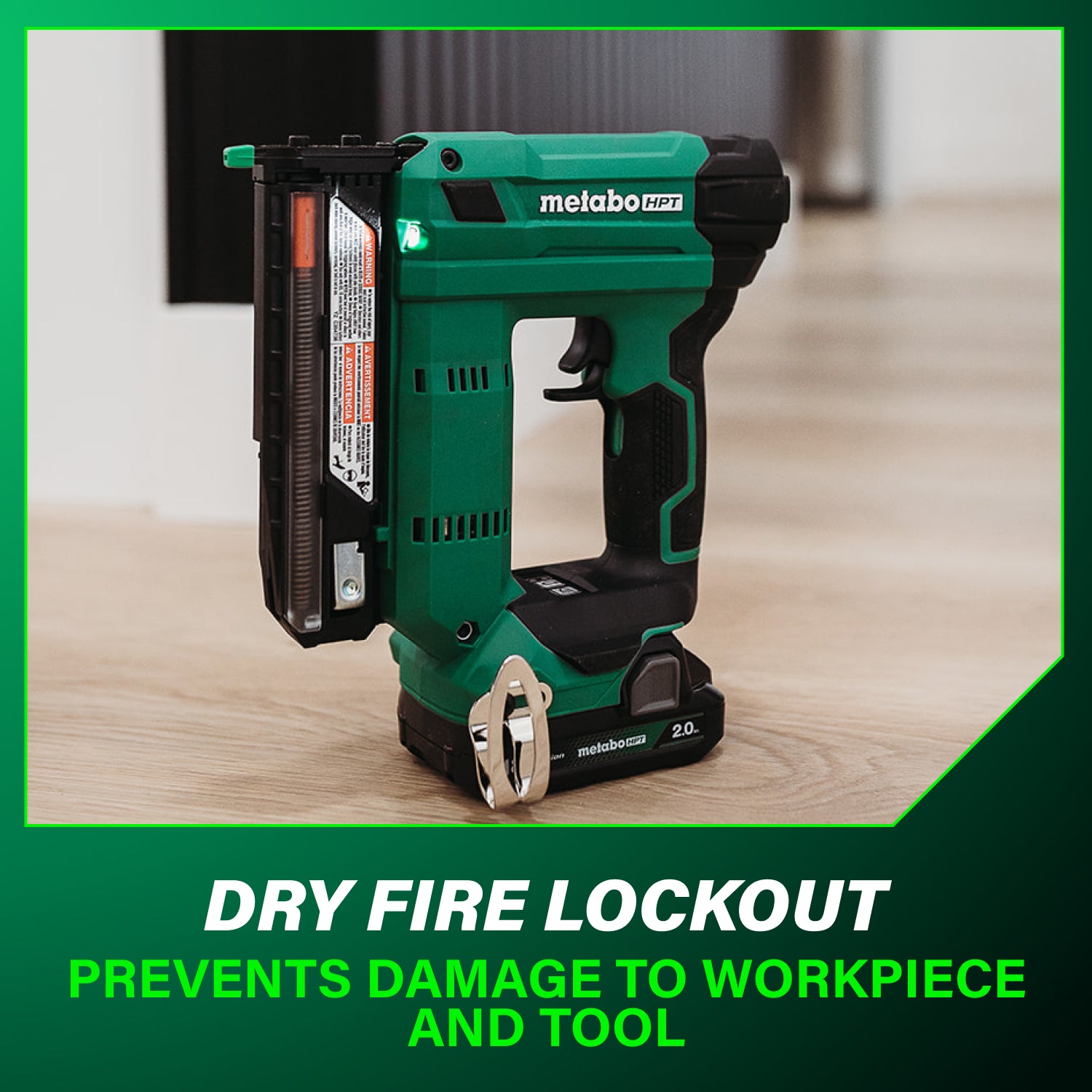

DRY FIRE LOCKOUT: Prevents damage to workpiece and tool
-
DOUBLE TRIGGER: Provides additional safety
-
BELT HOOK: Left or right mountable for preference and comfort
-

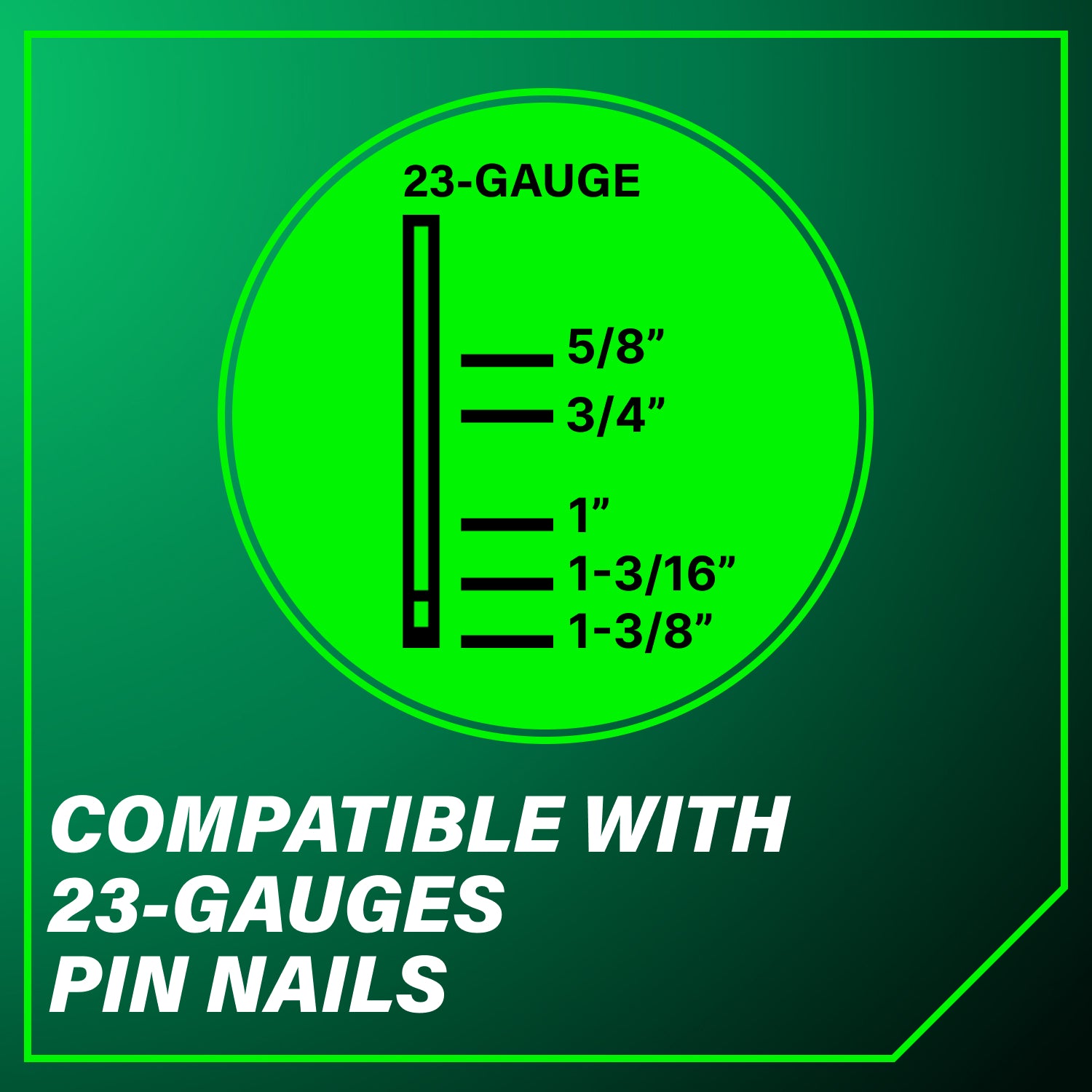

FASTENERS: Accepts 5/8" , 3/4", 1" 1-3/16" and 1-3/8" 23-Gauge Pin Nails
-

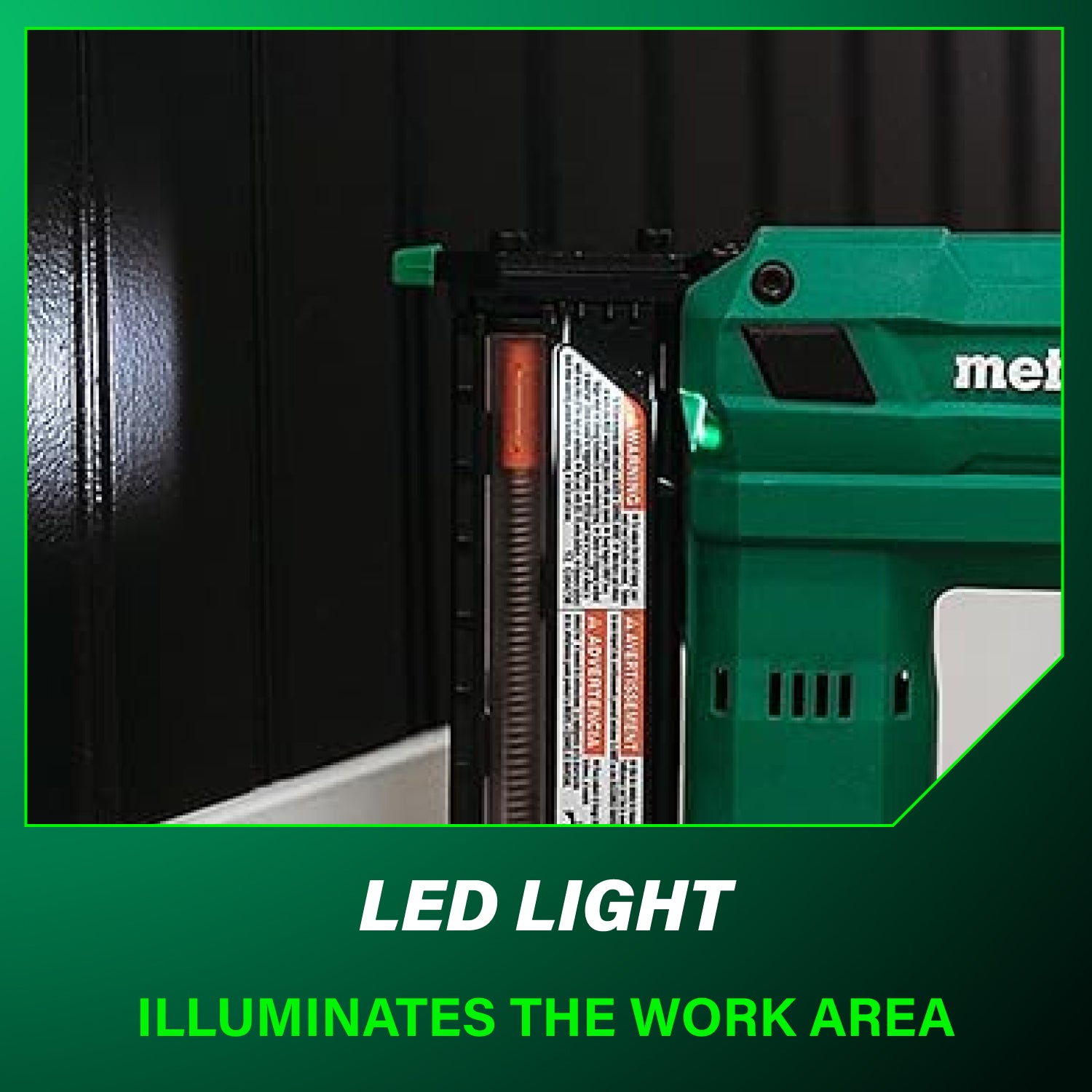

LED LIGHT: Bright LED illuminates the work area
-
AWARD: Rated the Pro Preferred Nailer for 12 years running (2014 - 2025) by Builder and Developer Magazine
-
COMFORT: Built-in counterweight reduces recoil
-
PROTECTION: Rubber bumpers protect the tool and work surfaces from damage
-
NO-PUSH SAFETY TIP: Reduces marring for a clean finish
-
ACCEPTS: Go lighter with an 18V battery or go longer with 18V/36V MultiVolt battery for up to 8.0Ah of runtime
-
APPLICATIONS: Ideal for cabinetry, paneling, small molding/trim, and craft work
-
RECOMMENDED: Use Metabo HPT 23-Gauge Pin Nails for best results
-

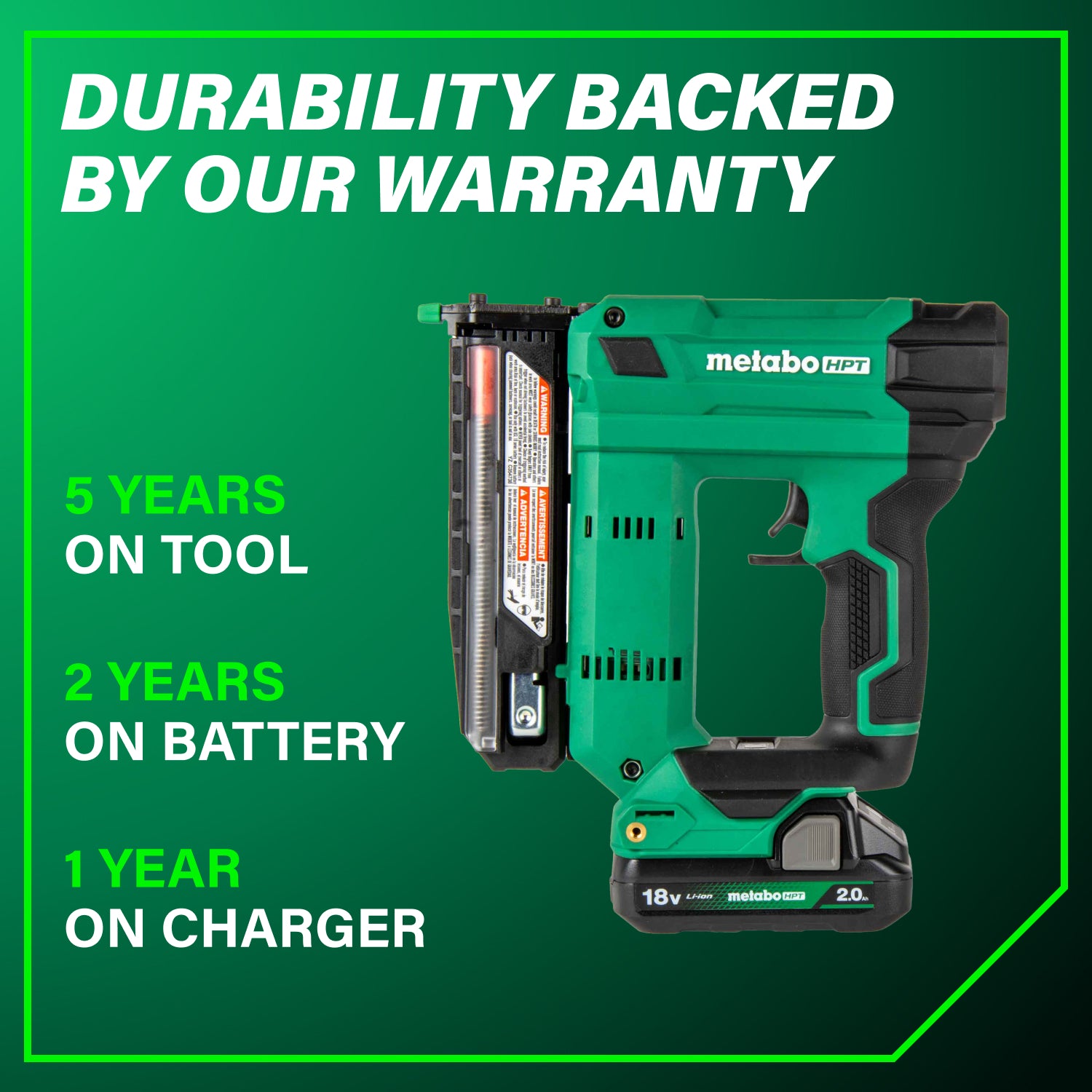

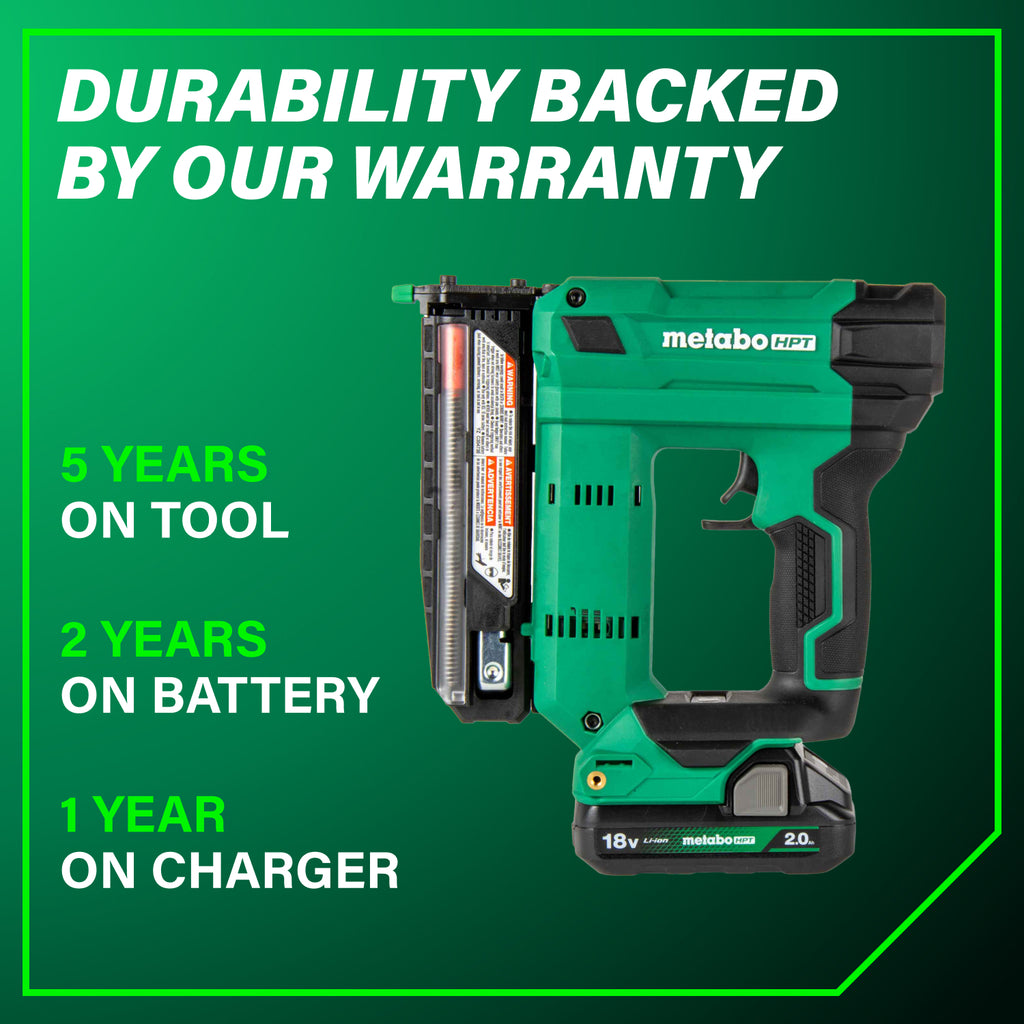

WARRANTY: Covered by Metabo HPT’s 5-year warranty, 2-year Lithium Ion battery warranty, and 1-year charger warranty

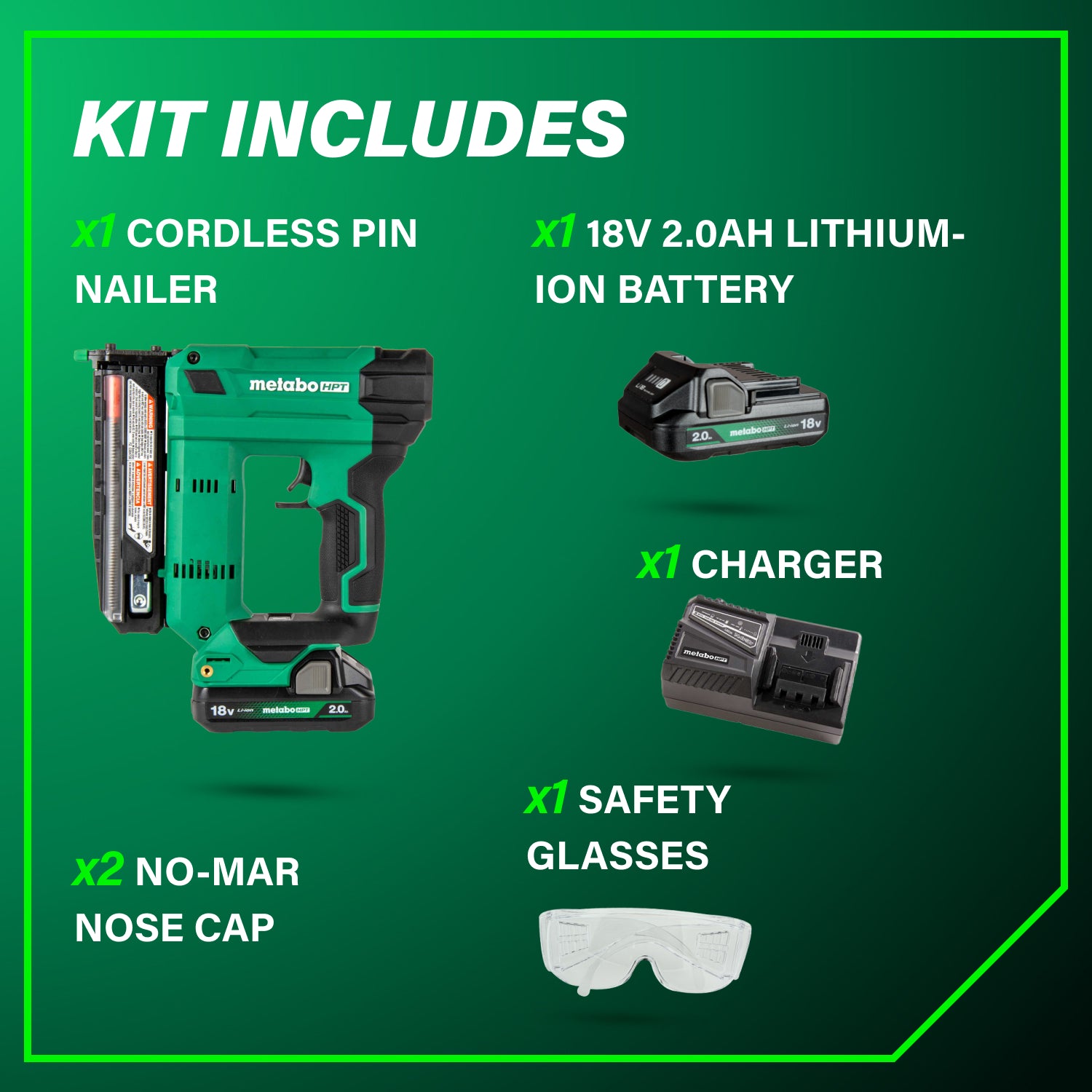

Included with the 18V MultiVolt Cordless Compact 23-Gauge Compact Pin Nailer
- 18V 2.0Ah Battery w/ Fuel Gauge (377797M)
- Charger (UC18YFSL)
- (2) No Mar Nose Caps (382441)
- Safety Glasses (875769)
Specifications
| Volts |
18V |
| Battery Type |
Li-Ion |
| Nail Length |
5/8 - 1-3/8 |
| Magazine Capacity |
100 |
| Nails per Charge (w/ 2.0Ah Battery) |
2700 |
| Magazine Angle |
0° |
| Magazine Loading |
Side |
| Dryfire Lockout |
Equipped |
| Battery Charge Indicator |
On Battery |
| LED Light |
On Tool |
| Belt Hook |
Equipped |
| Dimensions |
9-5/8" (L) x 8-15/16" (H) x 3-7/16" (W) |
| Weight (w/out battery) |
3.6 lbs |
| Warranty |
5 Years |
