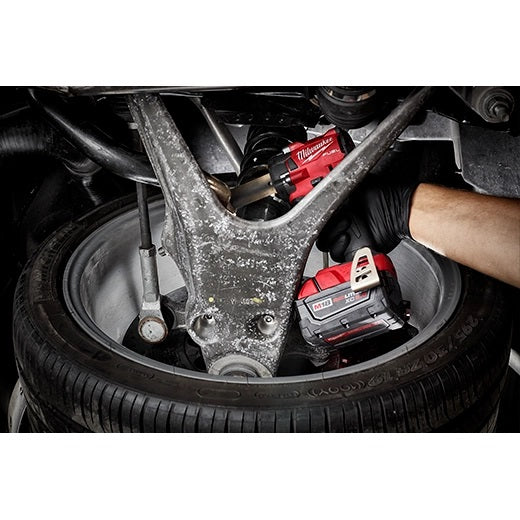

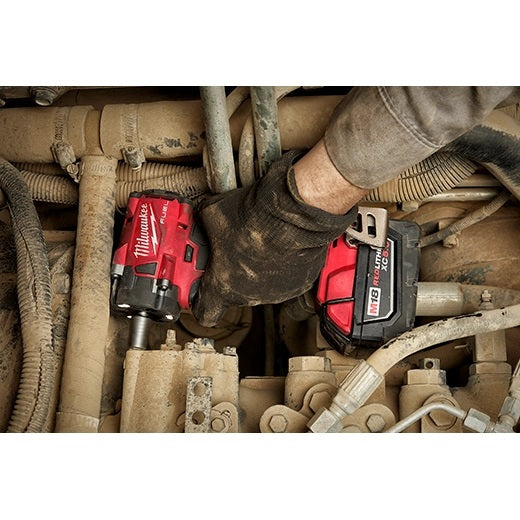

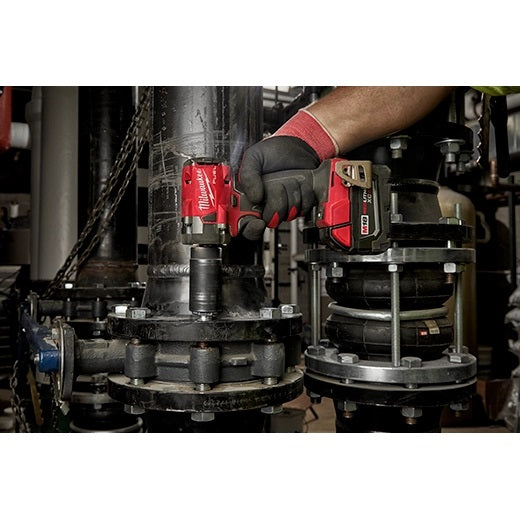

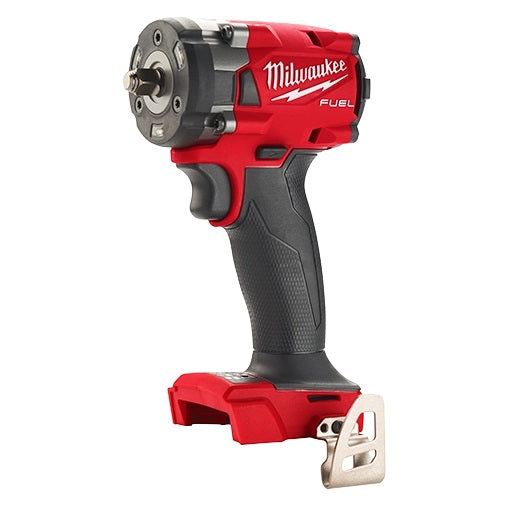

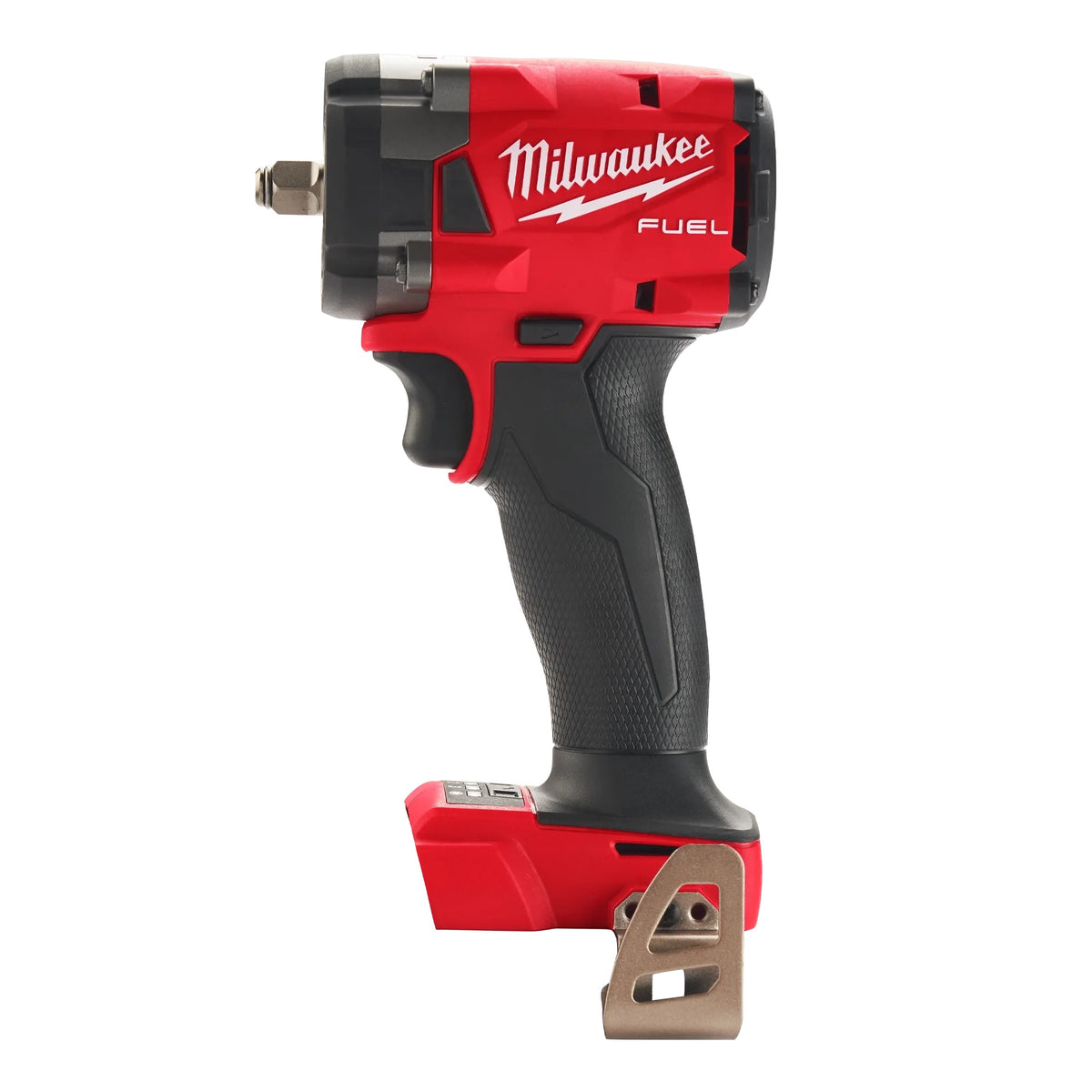

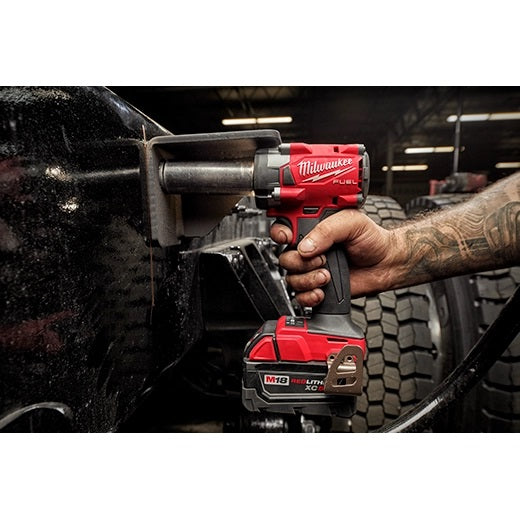

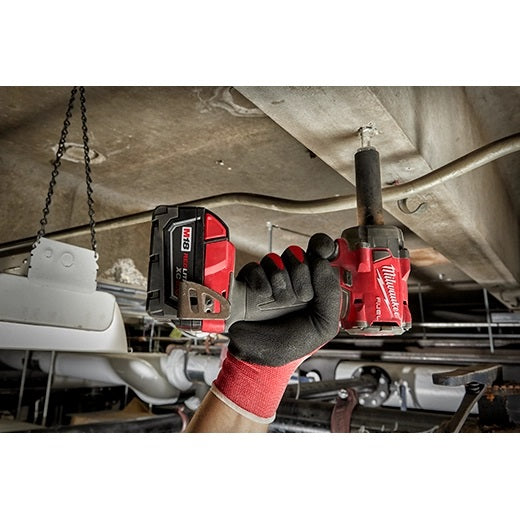

Our M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering you the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The MILWAUKEE® 3/8" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver you brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™ battery pack (not included) fits M18™ tools, delivering more work per charge and more work over the life of the pack.
Features
- 4.8" in length provides most access in tight spaces
- The POWERSTATE™ brushless motor delivers up to 250 ft-lbs. of nut-busting torque

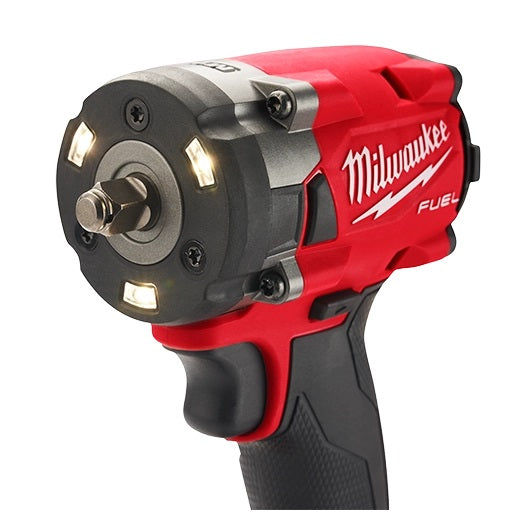

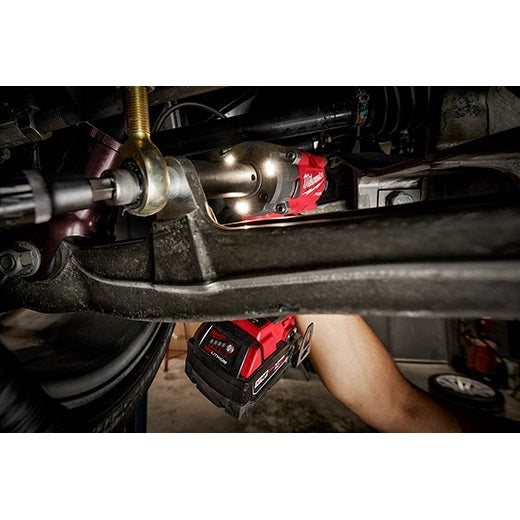

- Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows

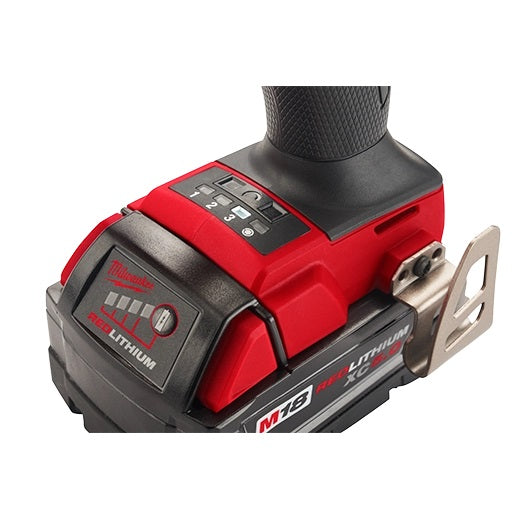

- 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
- Auto shut-off mode prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque.
- Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
- Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400
- Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
- REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
- Works in up to to 69kV environments
- Compatible with all M18™ batteries & Chargers
- In The Box :(1) M18 FUEL™ 3/8"" Compact Impact Wrench w/ Friction Ring Bare Tool
Specifications
| Battery System |
M18 |
| Motor Type |
POWERSTATE™ Brushless |
| Anvil Size |
3/8 in |
| Anvil Type |
3/8" Square w/ Friction Ring |
| Nut-Busting Torque |
250 ft/lbs |
| Fastening Torque |
250 ft/lbs |
| RPM Range |
0 - 2,400 rpm |
| IPM |
0 - 3,500 ipm |
| DRIVE CONTROL |
4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode |
| Length |
4.8 in |
| Weight |
3.9 lb |
| Tool Warranty |
5 Year Limited Warranty |
