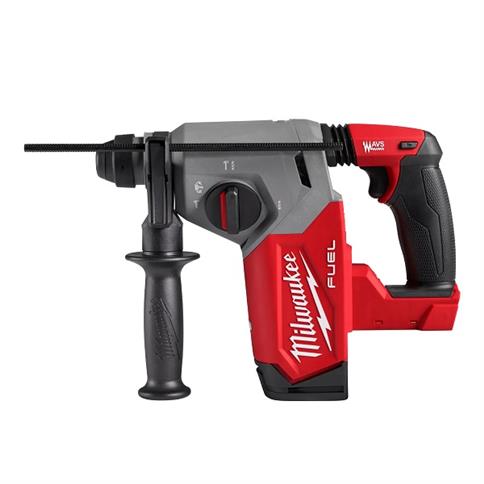

Our M18 FUEL™ 1" SDS Plus Rotary Hammer Kit is the next generation of cordless rotary hammers delivering ultimate jobsite performance and productivity. The MILWAUKEE® M18 FUEL™ 1" SDS Plus Rotary Hammer is the fastest drilling rotary hammer in its class, includes AUTOSTOP™ Control for enhanced safety, and can drill up to (125) 3/8 in. x 2 in. holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. The POWERSTATE™ Brushless Motor delivers you 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM, providing speed and power in the most demanding applications. REDLINK PLUS™ intelligence tool technology ensures maximum rotary drill performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while you're drilling in rebar or hard aggregate. Our AVS Anti-Vibration System minimizes vibration for maximum comfort.
Features
- Fastest drilling rotary hammer in class
- AUTOSTOP Kickback Control enhances safety by electronically sensing a tool bind-up and shutting the tool off
- With the M18 REDLITHIUM HIGHOUTPUT 6.0 Battery, the M18 FUEL 1" SDS Plus Rotary Hammer can deliver up to 125 holes of runtime of 3/8" x 2" holes
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
- POWERSTATE Brushless Motor: Provides 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM
- REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
- The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
Specifications
| Battery System |
M18 |
| Rotary Hammer Size |
1 |
| Tool Warranty |
5 Year (Tool), 3 Years (Battery) |
| Power Source |
Cordless |
| Motor Type |
Brushless |
| Handle Type |
DropMotor |
| Length |
11.5 in |
| Weight |
9.1 lb |
| Height |
9.0 in |
| Width |
4.25 in |
| No Load Speed |
1330 RPM |
| Blow Energy |
2 ft-lbs |
| BPM |
4800 bpm |
| Drilling Mode |
3-Mode: Rotary Hammer, Hammer Only, Rotation Only |
| Vibration |
AVS™ Anti-Vibration System |
| Fuel |
Yes |
| Voltage |
18V |
| Brushless |
Yes |
| Chuck Size |
SDS-plus |
| Chuck Type |
SDS Plus |
