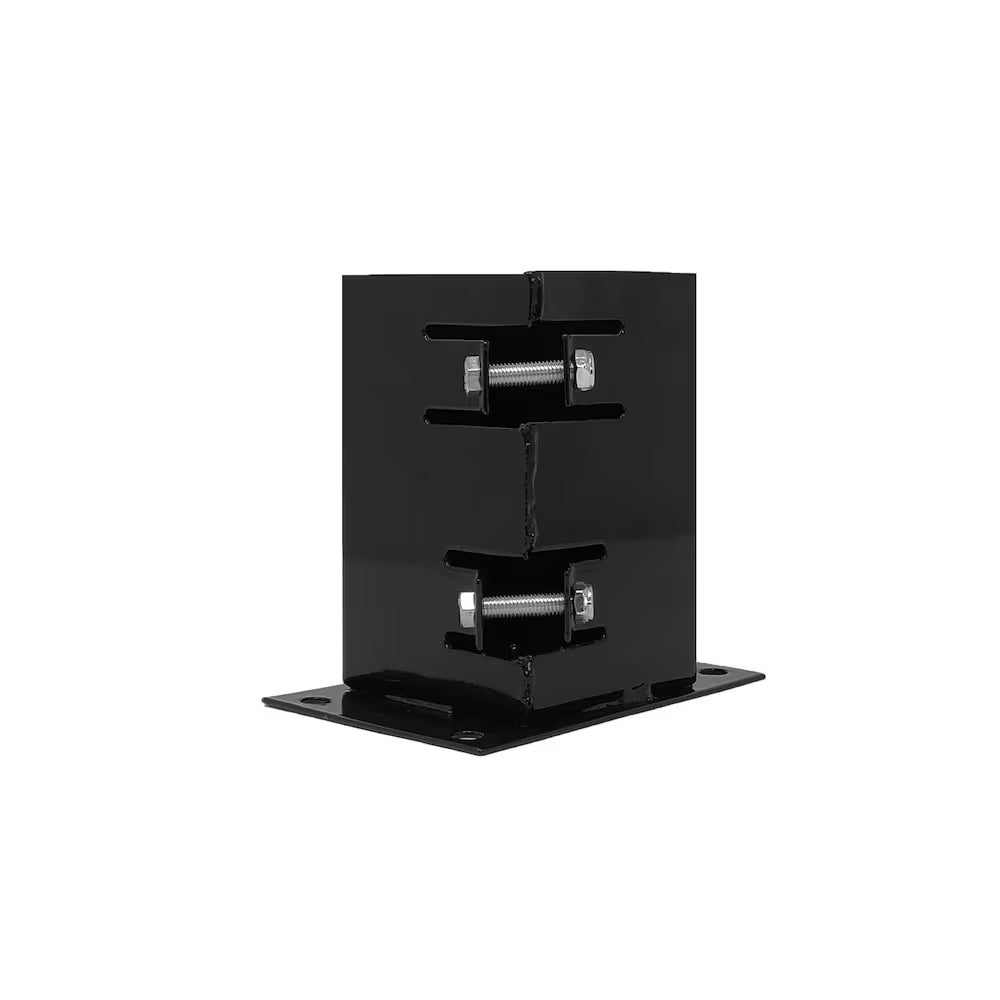

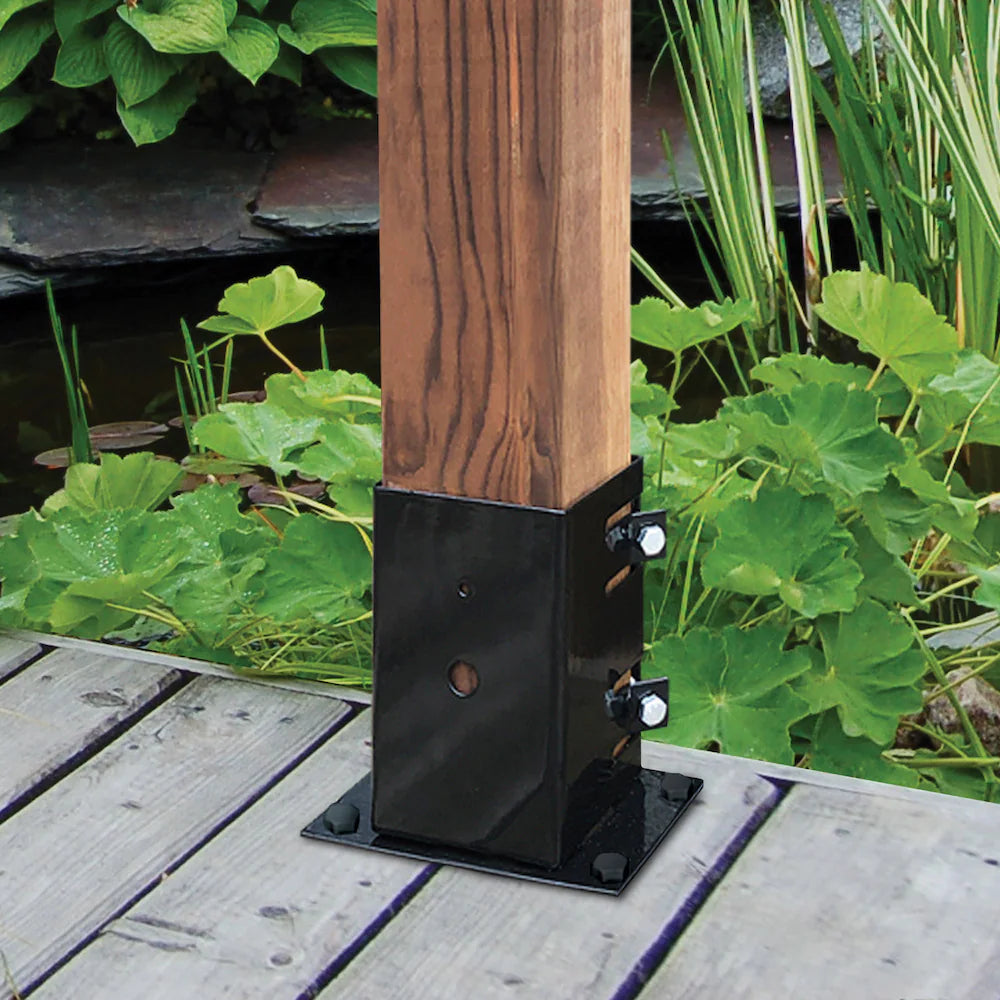

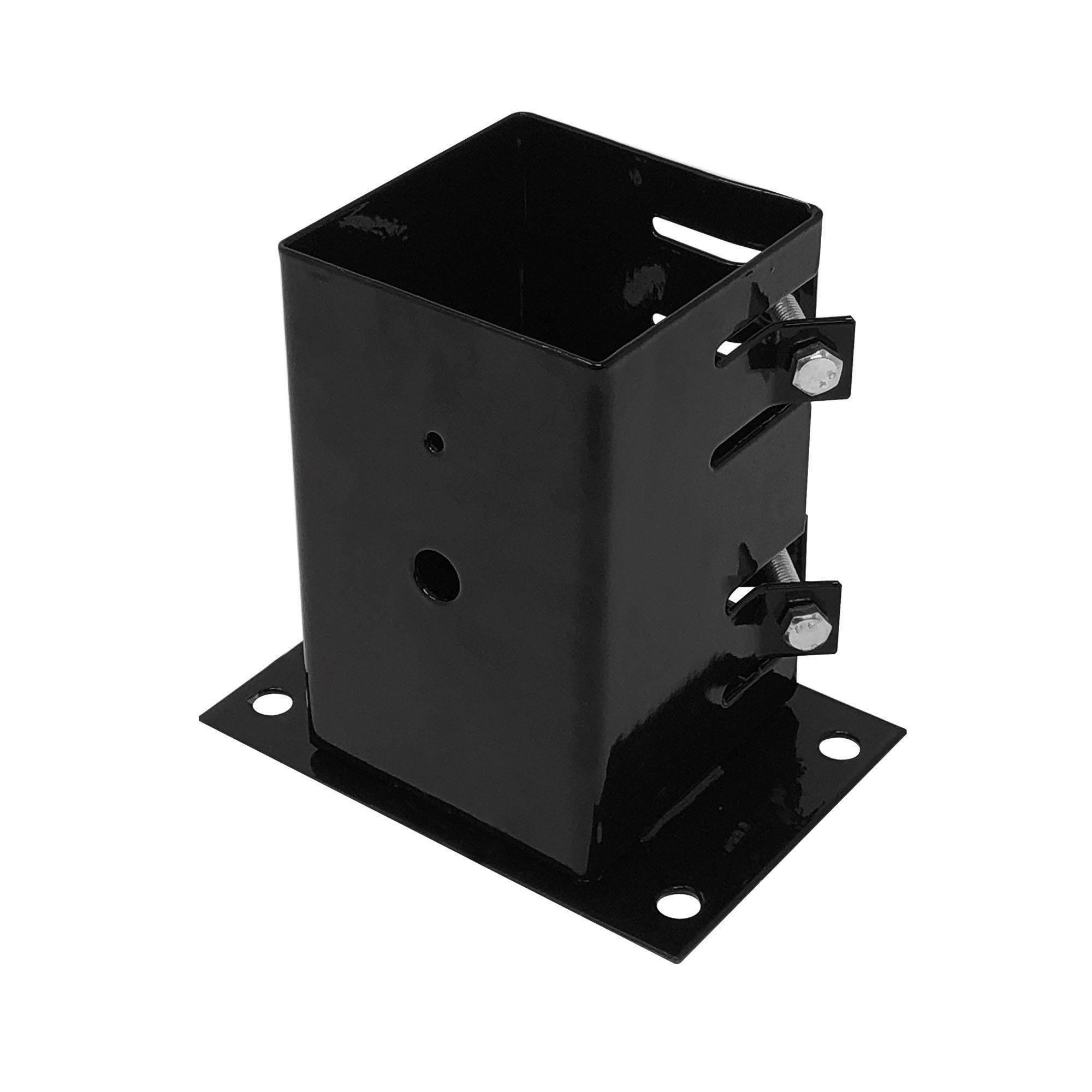

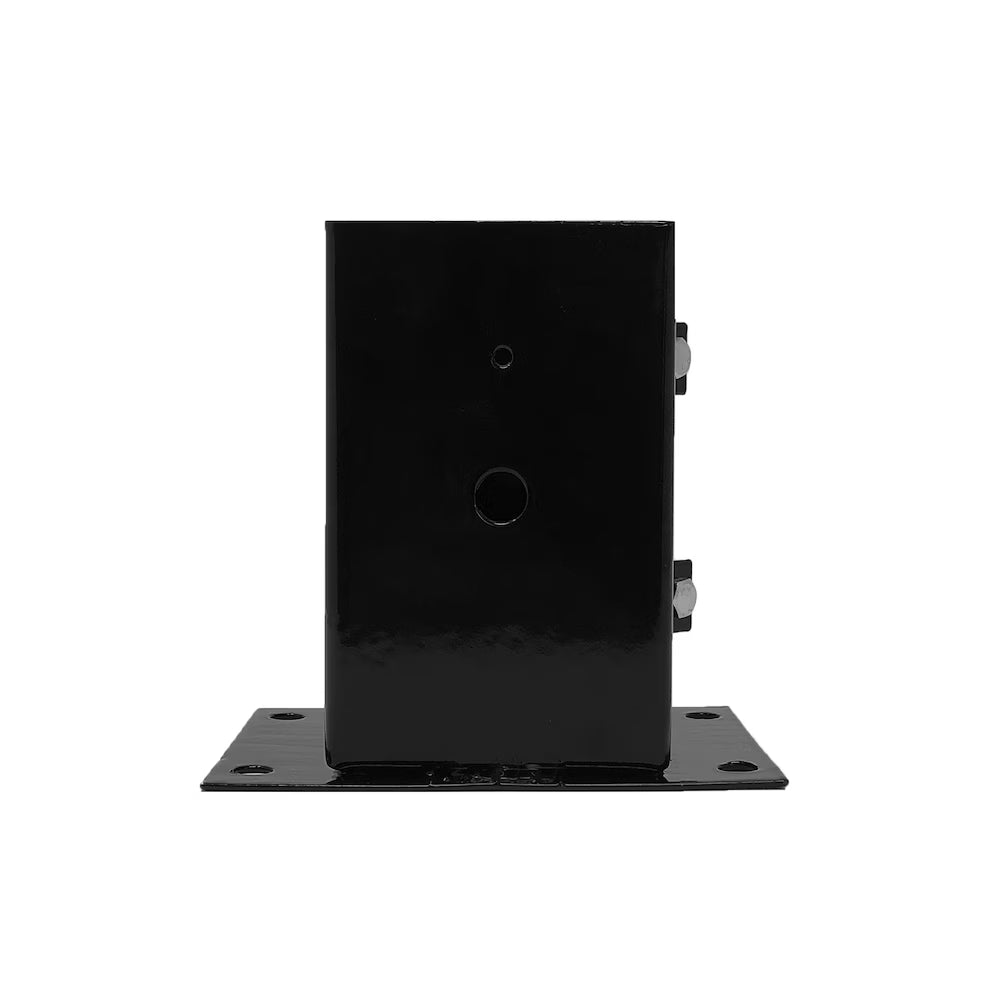

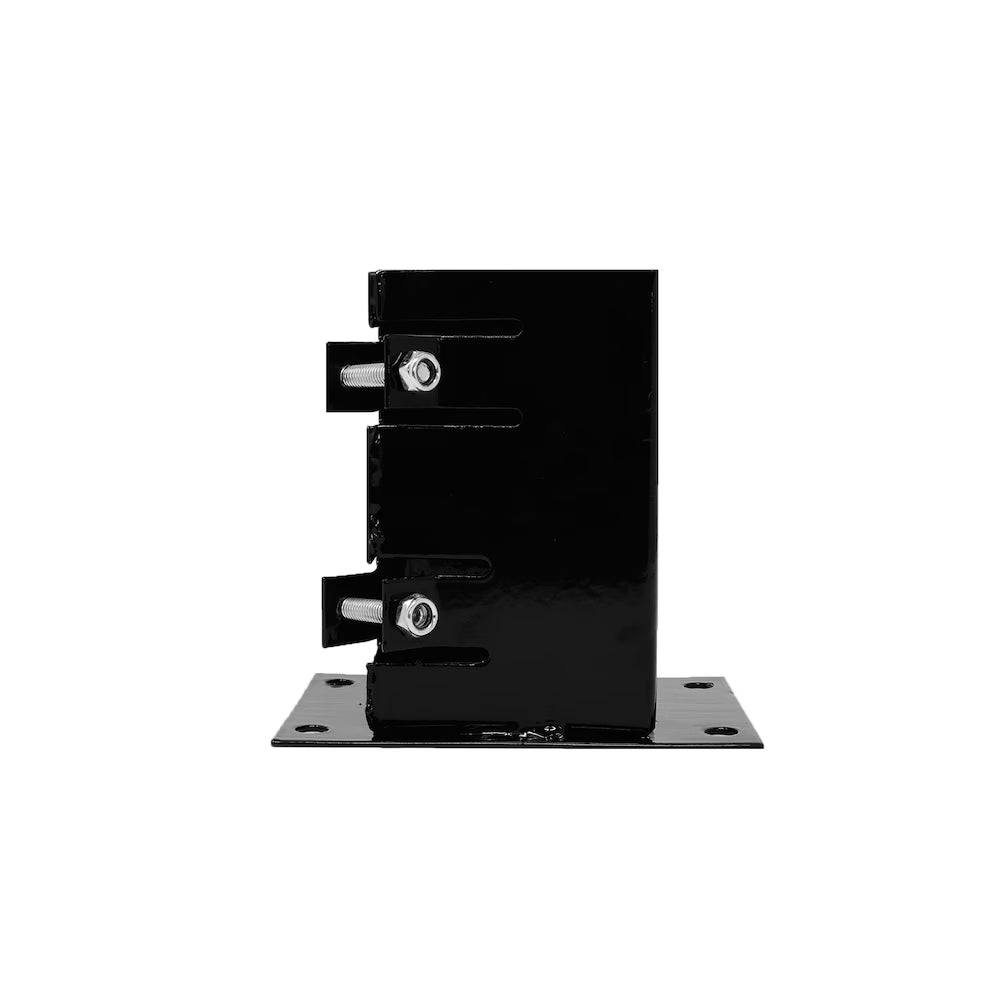

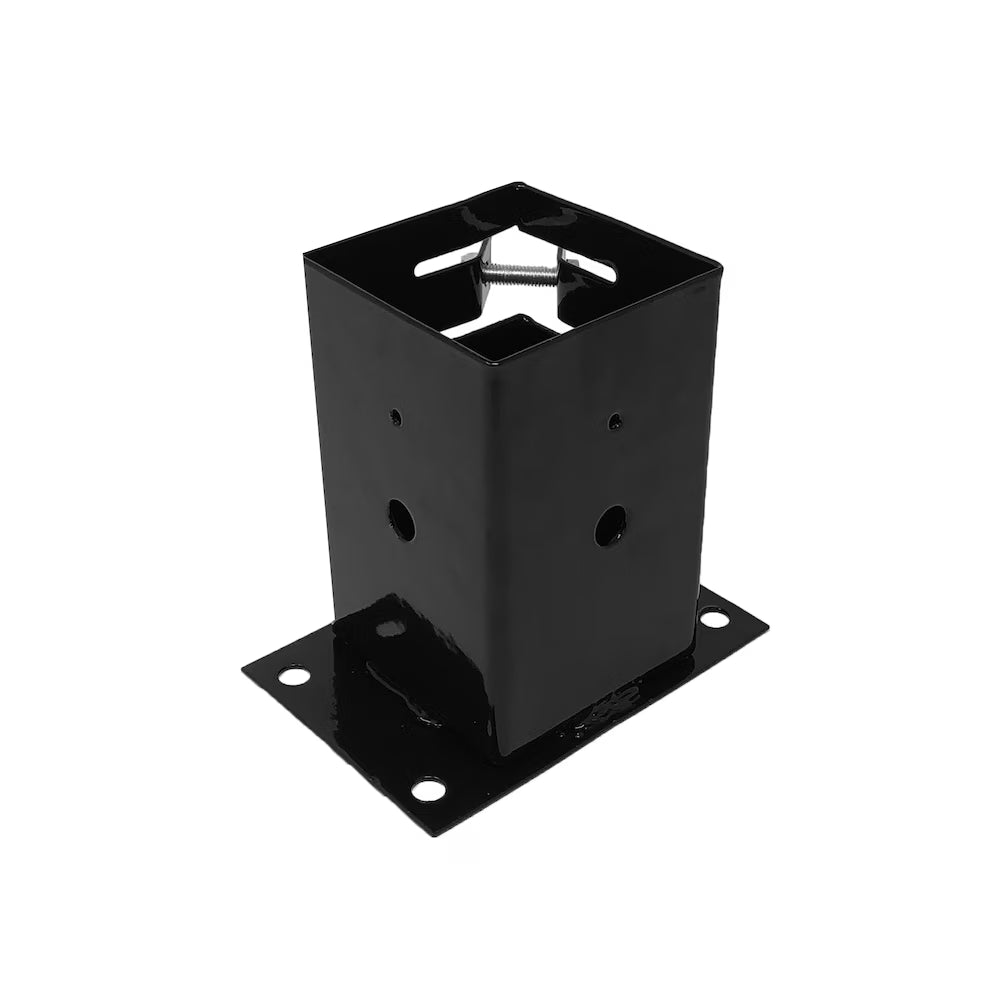

The Nuvo Iron bolt-down post base anchor is a surface-mount support designed for nominal 4 in. x 4 in. posts. Made from 14-gauge steel with a thermally bonded polyester powder-coated finish, it helps secure posts to wood or concrete surfaces while adding a clean, durable finish to fencing, railing, and other outdoor post projects.
Features
- Designed for nominal 4 in. x 4 in. posts

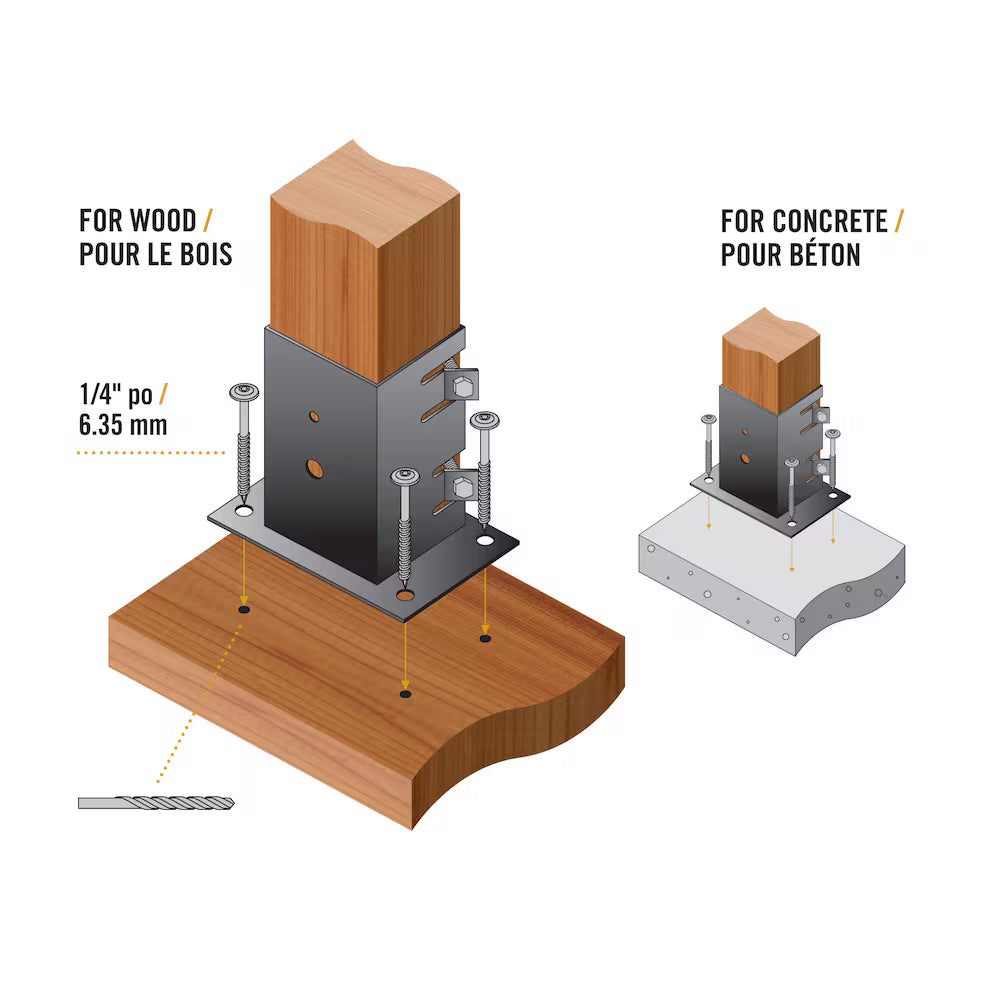

- Suitable for wood or concrete surface-mount installations
- Made from 14-gauge steel for durable post support
- Thermally bonded polyester powder-coated finish
- Pre-threaded bolts and self-locking nuts help secure the post in place
- Compatible with appropriate 1/4 in. diameter or #14 fasteners for mounting (fasteners not included)
- Additional holes allow for increased strength and stability
Specifications
| Model |
BDPA4B |
| Post Compatibility |
Nominal 4 in. x 4 in. post |
| Actual Post Fit |
3.5 in. x 3.5 in. dressed post |
| Material |
Steel |
| Steel Gauge |
14 gauge |
| Finish |
Thermally bonded polyester powder-coated glossy finish |
| Type |
Adjustable post base |
| Assembled Dimensions |

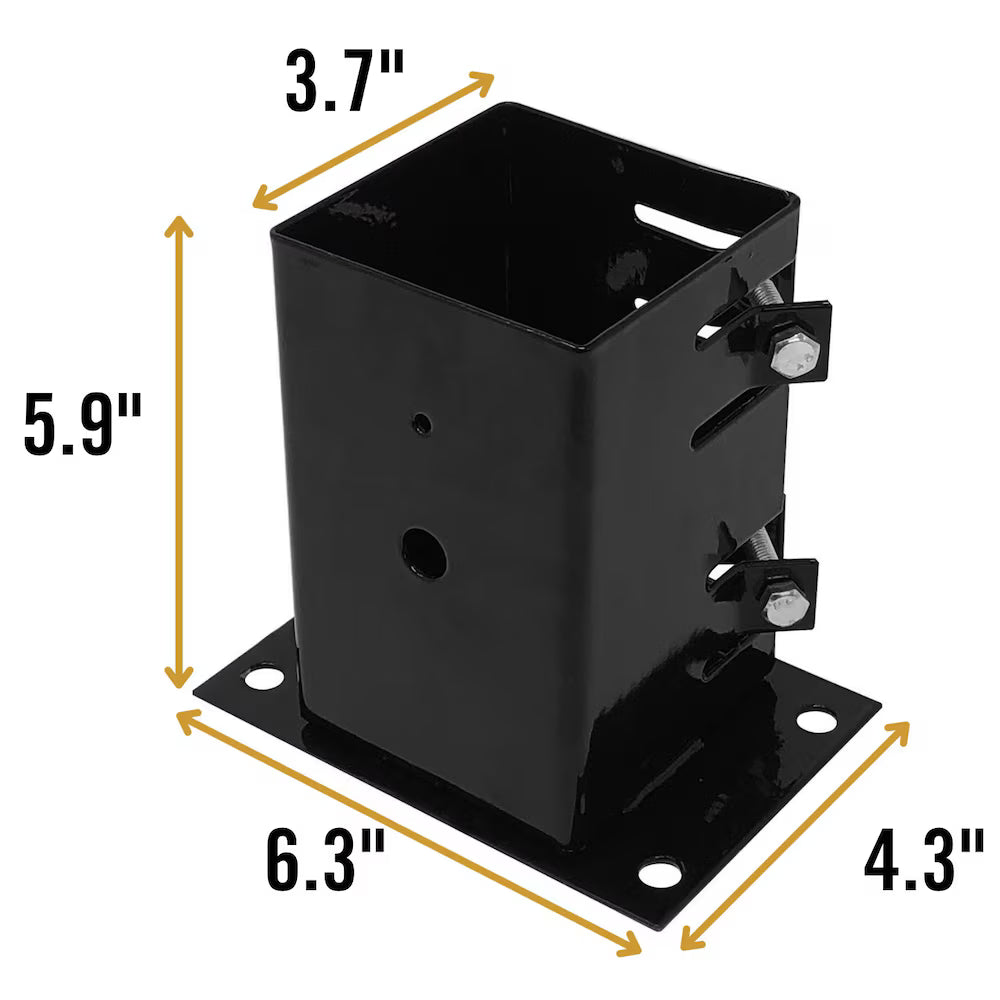

6.25 in. D x 4.25 in. W x 6.0 in. H |
| Assembled Weight |
2.4 lb |
| Mounting Fastener Compatibility |
1/4 in. diameter or #14 fasteners |
| Additional Hole Sizes |
1/8 in. holes for screws; 1/2 in. holes for lag bolts |
