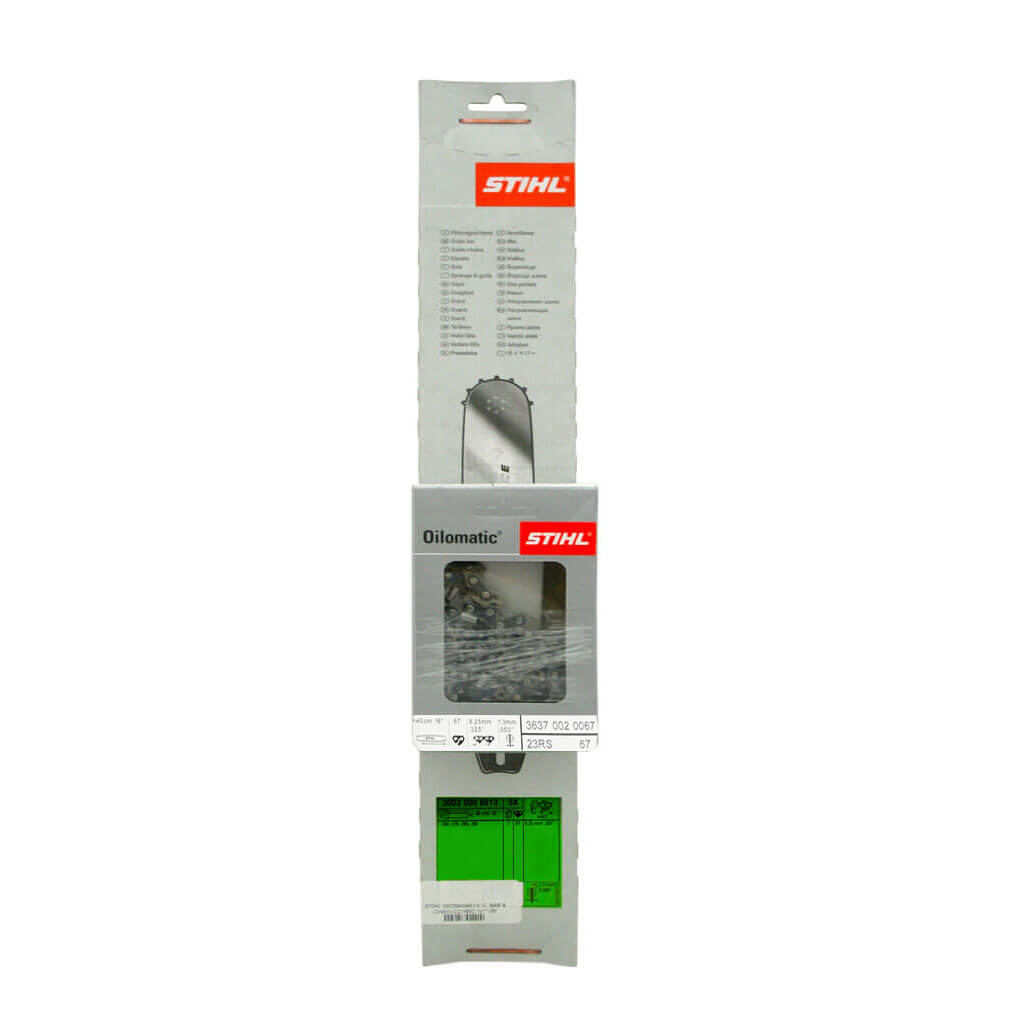

STIHL 3003 008 6613 & 23RSC67E 16 in. x 0.325 in. Bar and Chain Combo. The bar is made of three steel plates that are electrically welded together. The centre plate has been hollowed out to reduce weight. The nose sprocket is sealed to keep dirt and corrosive material out, therefore never needs to be greased and rails are induction hardened for long life. This bar has relatively small nose radius which helps reduce the incident of kickback (green colour-coded bar) and reduces weight. The chain is made for the most demanding cutting conditions and is loaded with professional features. The chain has Oilomatic drive link lubrication slots, which funnels oil directly to the rivet to reduce wear and is also pre-stretched at the factory, which helps eliminate excess adjustments during a break in periods. 23RS is part of the STIHL Rapid Super series. 23RS is a fast cutting chisel chain which works best in clean cutting conditions, where there is limited contact with dirt and other abrasive materials
Includes
- (1) 16 in. Rollomatic E Chainsaw Bar (3003 000 6613)
- (1) 0.325 in. 0.050–Gauge 67 Drive Links Chainsaw Chain (23RS67)
Specifications
0.325 in. 0.050–Gauge 67 Drive Links Chainsaw Chain (23RS67)
| Pitch |
.325 in. |
| Gauge |
.050 in. (1.3mm) |
| Sequence |
Standard |
| Cutter Type |
Round Chisel |
16 in. Rollomatic E Chainsaw Bar (3003 000 6613)
| Pitch |
0.325 in. |
| Cutting length |
16 in. (40cm) |
| Drive Link Count |
67 |
| Gauge |
0.063 in. |
