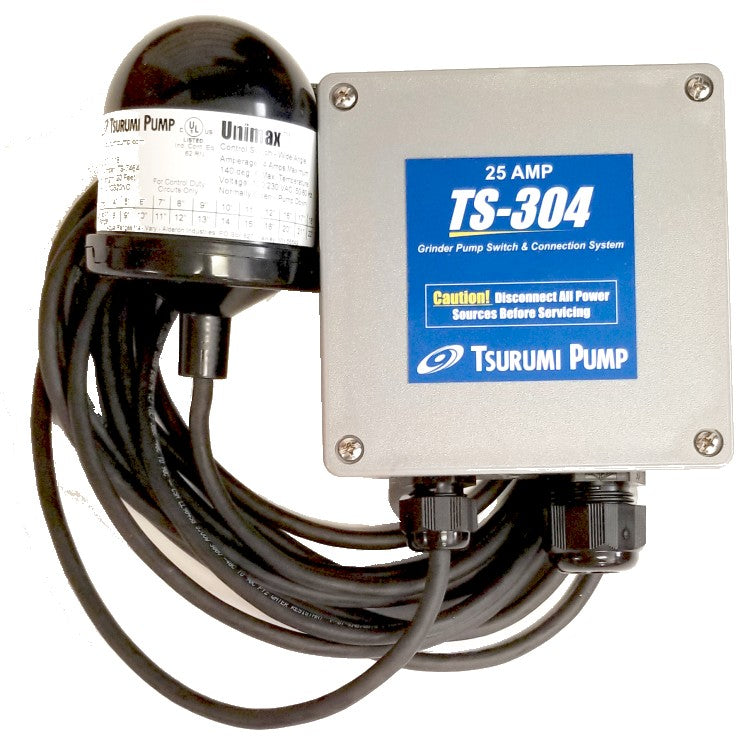

The TS-304 is a plug and play high amp switch and junction box. Use the TS-304 to operate pumps or motors up to 25 Full Load Amps (FLA). The switch is prewired to the box at the factory. The pump and incoming power are plugged into the quick connectors in the TS-304.
Features
- For use on the 110 Volt Model NK2-15 only
Specifications
| Electrical |
1 Amp @ 24VDC or 4 Amps @ 120VAC / 230VAC |
| Cable Type |
SJOOW flexible 18 gauge, 2 conductors, water resistant (UL, CSA) |
| Float Housing |
High impact PVC, 3.25" diameter x 4.55" length |
| Maximum Temperature |
140° F |
| Switch Configuration |
Single Pole, Single Throw |
| Switching Differential |
90 degrees total |
